Korg XVP-20

Korg XVP-20

Expression
Key facts
TypeVolume / expression pedal2
MakerKorg2
PredecessorXVP-10, launched 19941
BodyAluminum, black anodized finish1
Weight1.3 kg / 2.87 lbs.2
Input impedance50 k-ohms or greater2
PowerNone required (passive)2
In the boxCable, owner's manual2

The Korg XVP-20 is a volume and expression pedal from Korg, the successor to the XVP-10, which Korg says has been a long-selling success since its launch in 19941. It sits on the floor and controls the volume of your signal with your foot, and it also carries a separate expression jack for driving parameter inputs on other gear. For a player, that means one pedal can do two jobs: swell volume on your audio chain and control, say, delay repeats or a MIDI converter's expression input at the same time.

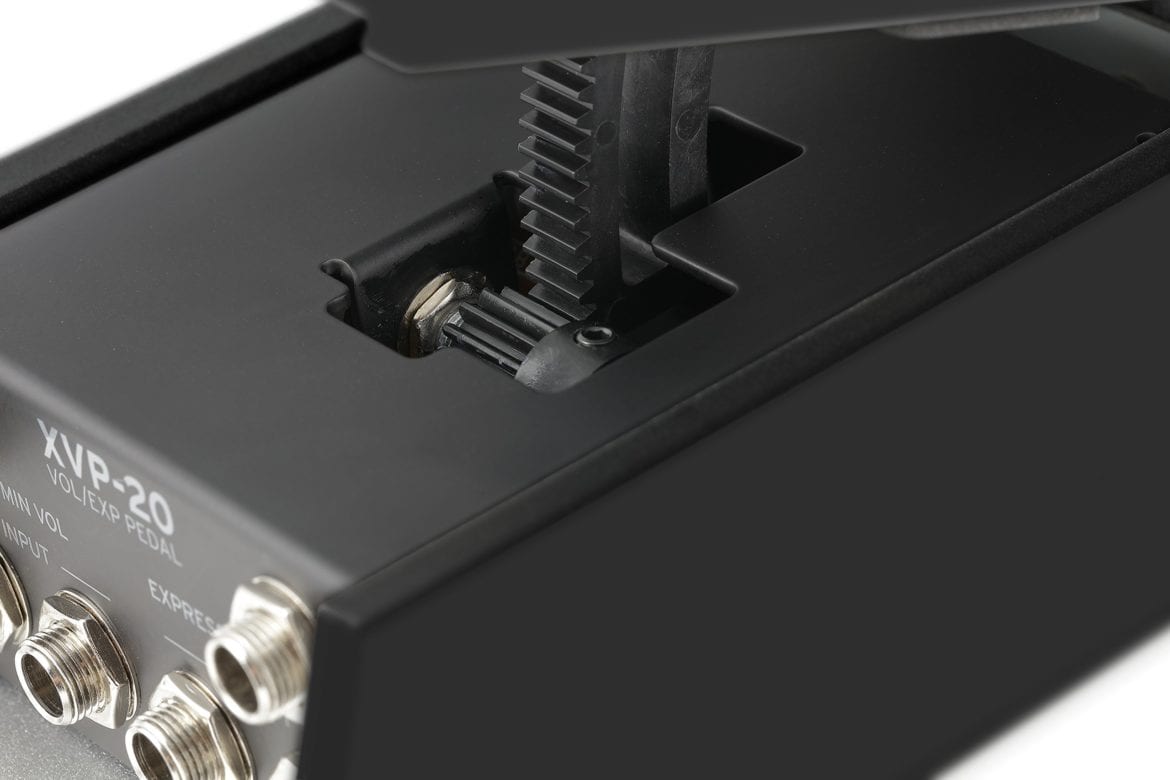

The body is aluminum with a black anodized finish, and Korg bills it as compact and sturdy1. It weighs 1.3 kg / 2.87 lbs.2.

Connections

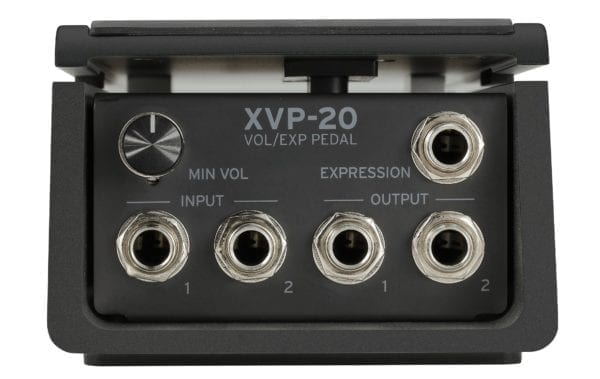

The XVP-20 is equipped with two sets of input/output and one expression jack1. In full, that is two audio input jacks (INPUT 1 and 2), two audio output jacks (OUTPUT 1 and 2), all mono 1/4" phone jacks, and one expression pedal jack2.

The routing is fixed and simple: the input of the INPUT 1 jack is output from the OUTPUT 1 jack, and the input of the INPUT 2 jack is output from the OUTPUT 2 jack2. That gives a player two ways to use it:

  • Stereo volume control: feed a stereo source into both inputs and its volume is controlled on both channels at once2.
  • Two instruments at once: feed two separate instruments in and control both simultaneously with the one pedal2.

The pedal includes an expression jack in addition to its audio jacks12.

Korg's manual advises turning off the power to all devices before making any connections, to avoid damaging your equipment2.

Controls and care

The only control besides the pedal itself is a minimum volume knob, which lets you adjust the volume range the pedal covers1. Set it high and the pedal swells from that floor level to full; set it to zero and you get the full range from silence to maximum.

For upkeep, Korg says to wipe the exterior with a clean, dry cloth, and not to use liquid cleaners such as benzene or thinner, cleaning compounds or flammable polishes2.

Videos

Conectando o pedal XVP20 no Korg Kronos
korgmann
Korg XVP-20 Expression Pedal featured Pitbull Audio Gear Preview powered by EnterTalk Radio
Pitbull Audio
Korg XVP-20 volume expression pedal - Musikmesse 2016
Bax-shop | Bax Music Goes

Questions

Can the Korg XVP-20 be used as an expression pedal?

Yes. Korg describes the XVP-20 as a volume and expression pedal, and it carries a dedicated expression jack alongside its audio inputs and outputs. The same pedal can therefore control volume on your audio signal and drive an expression input on another device.

Does the XVP-20 need power?

No power supply is needed. The XVP-20 is a passive pedal with no listed voltage or current requirement, so it runs entirely on the signal passing through it. Korg does advise turning off power to all connected devices before making or changing connections.

What is the input impedance of the Korg XVP-20?

The manual lists the input impedance as 50 k-ohms or greater. That is worth knowing if you plan to place it in front of a low-impedance-sensitive rig, since a passive volume pedal interacts with whatever sits before and after it in the chain.

What comes in the box with the XVP-20?

The box includes a cable and the owner's manual. Nothing else is listed as included, so any extra patch cables for your audio or expression connections are up to you.
