Eventide Rose

Eventide Rose

DelayHybrid
List price
$349
Key facts
TypeModulated delay pedal1
MakerEventide Audio5
Released2019, available for pre-order January 2019 with estimated shipping March 15, 20196
CircuitDigital delay line with analog mix, filter and feedback circuitry1
BypassThree modes: Buffered, Relay, Kill Input1
Power9-volt center negative power supply4
I/O1/4-inch mono input and output, guitar or line level input, Expression / Auxiliary / MIDI TRS input17

The Eventide Rose is a modulated delay pedal from Eventide, released in 2019. It is a digital delay line combined with analog circuitry for the mix, filtering and feedback stages, but it is built to behave like a bucket brigade (BBD) analog delay rather than a conventional digital one. Delicious Audio described it as "an exquisite digital emulation of a bucket brigade delay" with "the beauty of a bucket brigade delay but with none of its limitations"12.

On a Sweetwater demo, Daniel Fisher explained the idea in circuit terms: "it's using digital technology to serve more as a bucket brigade type of an approach like you'd have with an analog delay," comparing the approach to early digital delay effects such as the Lexicon PCM 422. The pedal sits in a vivid pink enclosure about the size of the H934.

A digital delay that works like a bucket brigade

Most digital delay pedals sample at a fixed rate and convert the signal to numbers; bucket brigade chips instead pass the signal along a chain of capacitors, clocked faster or slower to change the delay time, which colors the sound in a way players associate with vintage analog delays. The Rose uses a variable digital clock in the same spirit: it sweeps over a range of roughly 200kHz for maximum fidelity with up to 10 seconds of delay, down to roughly 8kHz to reach 50 seconds of delay6. Delay time varies from .01 seconds to 50 seconds14.

The modulation side is deep for a compact pedal. There are five modulation sources, with modulation types of sine, square and random6; Guitar World's review lists sine wave, square wave, envelope, random and external modulation sources7. On his demo, Pete Thorn pointed to the random source as the one that produces tape warble type sounds8.

The delay line also offers several special functions:

  • Delay Multiplier: increases the delay by 2x, 3x, 4x or 5x1
  • Invert phase: flips the output phase with respect to the input phase, for short delay times1
  • Reverse delay: plays the delay line backwards1
  • Comb delay, flip phase, long delay and reverse delay functions, as Guitar World summarized the mode list7

The controls, modes and HotSwitch

The Rose has six knobs: mix, feedback, depth, delay, filter and rate1. The delay knob handles coarse or fine tuning of the delay time9, and the analog mix, low pass filter and feedback stages are where the analog circuitry sits1.

There are two footswitches on the top panel, active and HotSwitch7. The HotSwitch is assignable, and can be set to any of the following1:

  • Tap Tempo
  • Delay Repeat
  • Mod Hold
  • Mod Reset
  • A/B between two settings within a preset

Pete Thorn's demo covered the two most used assignments: "you can program the hot switch to do multiple different things and one of them is you can do repeat hold with it," and with an expression pedal connected, "basically you can morph between any two settings so any settings on the knobs or the switches you can go from one to the other"8.

The pedal ships with five customizable factory presets1, which Bass Musician Magazine's reviewer found "sure to get you going with ideas"9. A July 2019 update increased the number of presets to 25, organized as 5 banks of 5 presets10.

The HotSwitch is assignable rather than fixed: it can be set to Tap Tempo, Delay Repeat, Mod Hold, Mod Reset, or A/B between two settings within a preset110.

Power, MIDI and connections

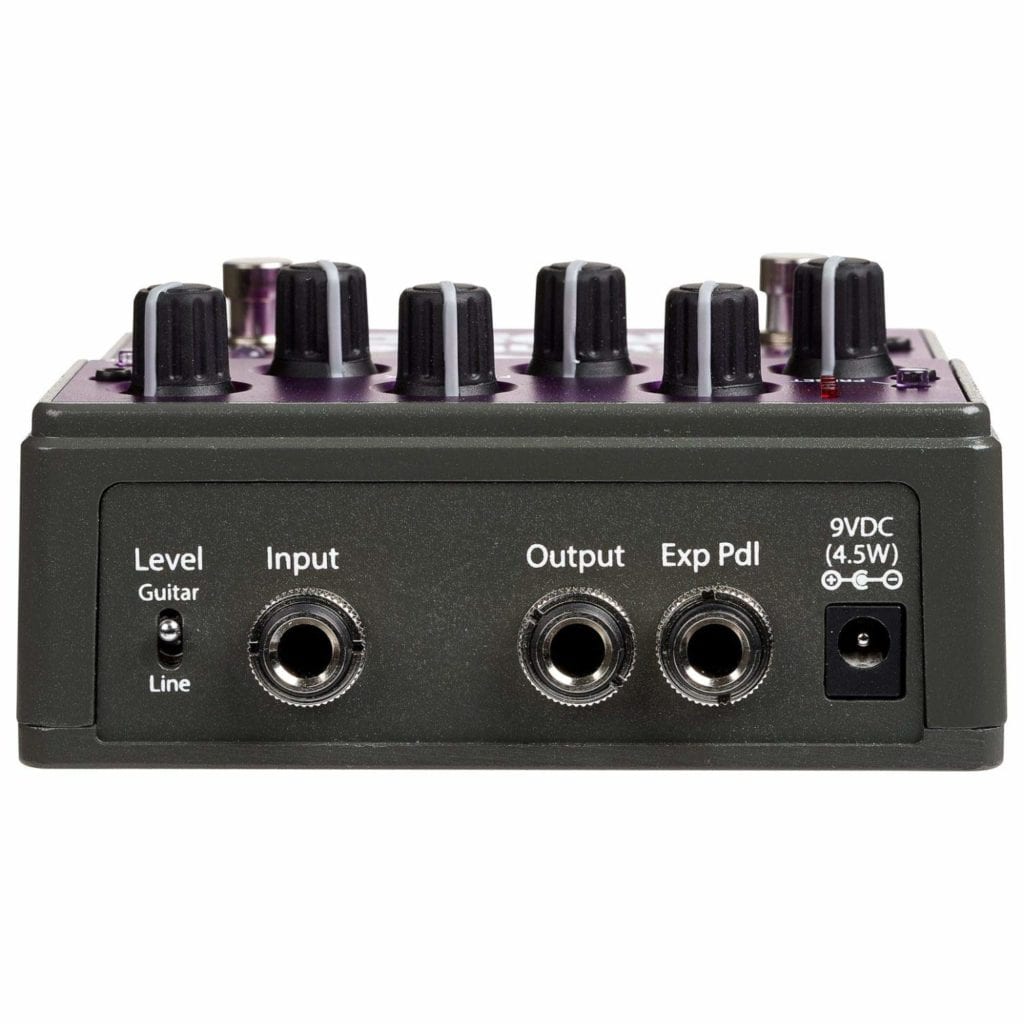

The Rose runs from a 9-volt center negative power supply4. Connections are simple: 1/4-inch mono input and output jacks, a mini switch for selecting guitar or line input levels, and a single TRS input that serves expression pedal, auxiliary switch and MIDI duties17. The pedal accepts line or instrument levels, so it can sit in a studio rig as well as on a pedalboard1.

Bypass is selectable between three types: Buffered, Relay (the true bypass option) and Kill Input1.

History: from the 1745 DDL to the Rose

Eventide introduced the Rose at NAMM 2019, six years after the H97. Delicious Audio traces the design back further: "Rose is the culmination of 5 years of R&D harkening back to the 1745 DDL, the original Digital Delay Line"1. The project began several years earlier, rooted in a desire to invent a new line of unique effects5. Designer Anthony Agnello instructed his team to create a platform that is "as analog as possible" yet open-ended1.

Part of that history is physical: a small number of experimental Rose prototypes were fabricated, six of which were given to guitarists, and Anthony Agnello's personal experimental Rose is one of a kind1. The Rose reached players as a small footprint effects pedal from Eventide Audio, available for pre-order worldwide with an estimated shipping date of March 15, 2019116.

What reviewers said

Guitar World's review gave the Rose high marks: "Rose delivers truly professional, pristine sound quality with responsive expressiveness that's in a class of its own," adding that nothing else sounds like it on the market7. Bass Musician Magazine's reviewer found it "amazing in its ease of use," letting a player who wants usable tones dial them in immediately, and praised the manual as heavily picture-based and incredibly easy9.

In Guitar World's video demo, Paul Riario and Christian Colabelli called it "capable of producing a wide range of sounds, whether on stage or in the studio"12.

Eventide Rose demo with Pete Thorn

On Pete Thorn's YouTube demo, Thorn walks through the knob set, the modulation sources including the random tape warble setting, and the HotSwitch and expression pedal morphing described above8.

Sweetwater's Eventide Rose demo

Sweetwater's Mitch Gallagher and Daniel Fisher demo covers the bucket brigade approach, the Lexicon PCM 42 comparison, and the range of delay times from short modulated sounds up to the long clocked delays2.

Videos

Eventide Rose Pedal Factory Presets Guitar Demo: Bank 1
Eventide Audio

Questions

How long can the Eventide Rose delay?

The delay clock sweeps across a wide range, giving delay times from .01 seconds up to 50 seconds. At the high end the clock runs down to around 8kHz to reach those long times, while around 200kHz gives maximum fidelity with up to 10 seconds of delay. A Delay Multiplier control can also multiply the current delay time by 2x, 3x, 4x or 5x.

Does the Eventide Rose have tap tempo?

Yes. Tap tempo is one of the functions that can be assigned to the HotSwitch footswitch, alongside Delay Repeat, Mod Hold, Mod Reset and A/B switching between two settings within a preset. An expression pedal can also morph between any two knob or switch settings.

Is the Eventide Rose true bypass?

It offers three bypass modes: Buffered, Relay and Kill Input. Relay bypass is the true bypass option, while buffered and kill input modes suit other setups. The player chooses which mode fits their signal chain.

How many presets does the Eventide Rose hold?

It ships with five customizable factory presets. A later update increased the number of presets to 25, organized as 5 banks of 5 presets, so an updated pedal holds considerably more than the original five.

Is the Eventide Rose stereo?

No. The pedal has 1/4-inch mono input and output jacks, with a mini switch for selecting guitar or line input levels. It is a mono delay pedal.

Does the Eventide Rose work with MIDI?

Yes. MIDI is handled through a single TRS input jack that also serves expression pedal and auxiliary switch connections. The same jack covers expression, auxiliary switching and MIDI control.
