MXR EVH 5150 Chorus

MXR EVH 5150 Chorus

ChorusAnalog
List price
$209.99
Key facts
TypeAnalog chorus pedal2
MakerMXR1
IntroducedSummer NAMM, July 20183
StatusShipping4
BypassInternal True/Buffered Bypass switch1
Power9V power supply or single 9V battery6
OutputsMono and stereo1

The MXR EVH 5150 Chorus is an analog chorus pedal from MXR, built to recreate the chorus unit Eddie Van Halen used on some of his most classic recordings from the early 1980s1. Premier Guitar describes it as "built to capture those sounds in a stompbox format," with EVH stripes-gone-wild graphics in cream and blue on the enclosure2. It is the same size as MXR's EVH 117 Flanger and 5150 Overdrive, so it sits alongside those pedals as part of the EVH series2.

MXR says the pedal delivers a thick, textured chorus, and suggests combining it with the 5150 Overdrive "for a huge sound that's thick and chewy"1. It was first shown at Summer NAMM 20183.

The controls

The pedal keeps the control set simple: three knobs, Volume, Tone and Intensity1. Guitar World's reviewer, Paul Riario, found the layout straightforward, with the Intensity knob setting the amount of chorusing "from richly textured to detuned vibrato," the Tone knob shaping the EQ, and the Volume knob controlling the output level6.

ControlWhat it does
IntensitySets the amount of chorusing, from richly textured to detuned vibrato6
ToneEQ shape6
VolumeOutput level; two flashing LEDs indicate where to set the best signal-to-noise ratio6

A useful detail: the volume knob has two flashing LEDs that show where to set the control for the best signal-to-noise ratio, which takes the guesswork out of matching the pedal to your rig6.

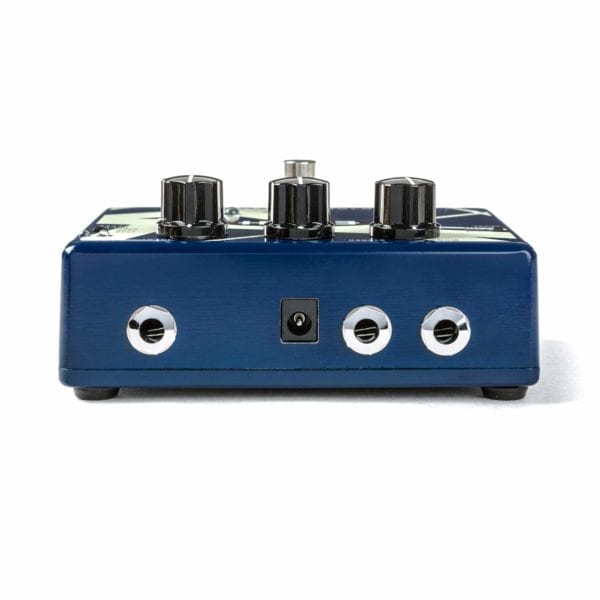

On either side of the pedal are Input and Output Level pad switches1. The input pad offers -20, -35 or -50dB settings and the output pad -20 or -35dB3. In MXR's demo video, Brian Kehoe of MXR and Dunlop explained that these give you room to run the pedal through an effects loop or to handle hot pickups4. The manual lists the same ranges, with the Treble control specified at +12dB, -16dB and 60kHz, and a noise floor of -89dBV7.

There is also an internal True/Buffered Bypass switch, so you can choose true bypass or buffered bypass depending on how the rest of your board is wired1. Gearnews described this as a flexibility feature for modern rigs1.

MusicRadar's reviewer noted that the prominent battery compartment lid "might cause problems for pedalboard mounting with Velcro"8. If you mount pedals with hook-and-loop fastener, plan for that lid before sticking the pedal down.

History: based on Eddie Van Halen's chorus

The pedal is based on a chorus unit Eddie Van Halen used to add texture and dimension to classic recordings from the early 1980s1. Gearnews identifies those recordings as tracks like Pretty Woman and the Diver Down album3, and in MXR's demo video the unit is described as what Eddie used on the recordings of Diver Down4.

The pedal was developed with Eddie Van Halen, who was closely involved with the development of EVH products4. It was officially revealed at Summer NAMM 2018, headlining Dunlop's pedal lineup at the show3, with Guitar World reporting the debut in July 20183. At launch the price had yet to be determined9; by 2023 Premier Guitar listed the street price at $1992, and MXR's parts listing gives the current list price as $209.995.

In the Sweetwater demo video, the pedal's controls and sounds are walked through, including the input and output level options and the stereo outputs613.

MXR EVH 5150 Chorus demo

What reviewers said

MusicRadar's Trevor Curwen reviewed the pedal and summed up the sound as an "Excellent old-school chorus sound"8. Gearnews, reporting from the 2018 launch, liked the sound on the demo, finding it "quite full and not too much wobble"3.

"Excellent old-school chorus sound."
Reviewer verdict on the MXR EVH 5150 Chorus8

How it compares in the MXR chorus line

MXR makes several other chorus pedals alongside this one, including the MXR Analog Chorus, the MXR Stereo Chorus, the MXR Micro Chorus and the MXR Black Label Chorus. The EVH 5150 Chorus stands apart from these as the signature model built around Eddie Van Halen's own early 1980s chorus unit, with the pad switches and internal bypass switch aimed at integrating it into a larger rig1. Its enclosure is the same size as the EVH 117 Flanger and the 5150 Overdrive from the same EVH series2.

Videos

MXR EVH 5150 CHORUS, "DIVER DOWN" tones, in a box!
Pete Thorn
First Look: EVH 5150 Chorus
Premier Guitar

Questions

Is the MXR EVH 5150 Chorus analog?

Yes. Premier Guitar's review describes it as an analog chorus, built to capture the sounds of the chorus unit Eddie Van Halen used on his early 1980s recordings in a stompbox format. MXR also makes digital and other analog chorus pedals, but this one is analog.

Does the EVH 5150 Chorus run on a battery?

Yes. The pedal runs from either a 9V power supply or a single 9V battery. MusicRadar's reviewer noted the battery compartment lid is prominent and might cause problems for pedalboard mounting with Velcro, so board builders should plan for it.

Is the MXR EVH 5150 Chorus true bypass?

It can be. An internal True/Buffered Bypass switch lets you choose between true bypass and buffered bypass, which MXR describes as giving modern rig flexibility. You set it once inside the pedal rather than from a switch on the surface.

What chorus did Eddie Van Halen use on Diver Down?

The EVH 5150 Chorus is based on a chorus unit Eddie Van Halen used on classic recordings from the early 1980s, including the tracks on Diver Down and Pretty Woman. MXR says the pedal recreates that unit rather than emulating it.

Does the EVH 5150 Chorus have stereo outputs?

Yes. The pedal has both mono and stereo outputs, so you can run a single amp or split the signal across two amps for a stereo chorus spread. Output level pad switches on the side help match levels in either setup.

Sources (9)
  1. MXR® EVH 5150™ CHORUS, Dunlop (jimdunlop.com)
  2. MXR EVH 5150 Chorus Review, Premier Guitar, 2018-11-26
  3. Summer NAMM 2018: MXR EVH5150 Chorus pedal, gearnews.com, 2018-07-01
  4. MXR EVH 5150 Chorus Pedal Demo, Sweetwater (YouTube), 2018-08-27
  5. MXR® EVH® 5150™ OVERDRIVE, Jim Dunlop (jimdunlop.com)
  6. Review: MXR EVH 5150 Chorus Pedal, Guitar World, 2018-12-11
  7. EVH30.pdf, Jim Dunlop (jimdunlop.com), 2020
  8. MXR EVH 5150 Chorus review, MusicRadar, 2018-11-11
  9. EVH Debuts New 5150 Chorus Pedal, Guitar World, 2018-07-06
