Orange Two Stroke

Orange Two Stroke

Boost
Key facts
TypeClean boost pedal with a built-in active EQ1
MakerOrange1
IntroducedNAMM, January 20162
BoostUp to +12dB1
EQTwo parametric bands, Hi and Lo, each with +/- 18dB of cut or boost23
BypassBuffered4
Power9V battery or 9 to 12V DC adapter, center negative1
Current draw28mA at 9V1
Dimensions9.5 x 6.5 x 13cm (W x H x D)1

What it does to your sound

The Two Stroke combines two jobs in one box. The boost side gives up to +12dB of clean volume, which Orange positions as ideal for solos, stacked gain, or fattening a clean sound1. The EQ side then lets you cut or boost mids and highs with what Orange calls pinpoint control1. Guitar.com's NAMM coverage reported that the pedal was "painstakingly engineered for superior low-noise performance, whilst its parametric nature makes for a much smoother, more musical response when compared to a graphic equaliser"2.

Because the boost feeds the EQ rather than following it, the order matters to how the pedal behaves. Pedal of the Day's review explains that the Oil knob "controls the level of clean volume boost BEFORE the EQ section, up to +12dB of output to work with"3. The same review notes the volume control can push an amp "into gorgeous breakup territory"3, which is the classic clean boost use: hitting the amp's front end harder so it breaks up on its own.

Controls

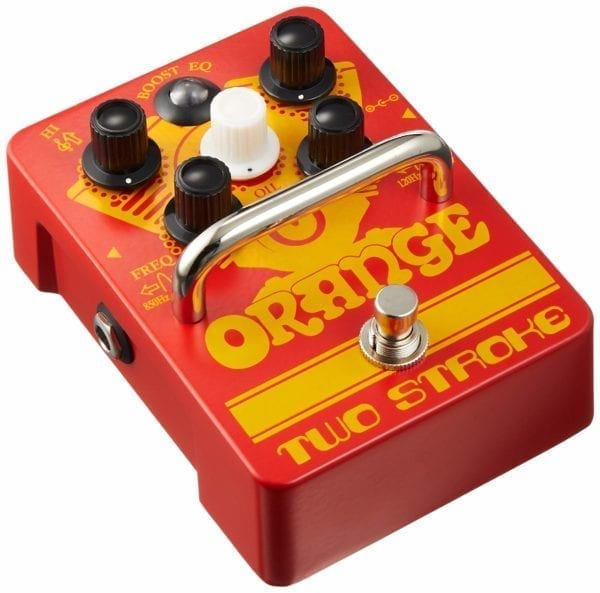

The five knobs, left to right, are Hi, Q, Oil (Level), Q, and Lo1.

ControlWhat it does
Oil (Level)Clean volume boost before the EQ section, up to +12dB3
Hi Boost/Cut+/- 18dB of cut or boost on the Hi band, 12:00 is unity3
Hi FREQSelects the Hi center frequency, 850Hz to 8.5kHz3
Lo Boost/Cut+/- 18dB of cut or boost on the Lo band, 12:00 is unity3
Lo FREQSelects the Lo center frequency, 120Hz to 1.2kHz3

The two bands have no pre-defined frequencies, and each carries what Pedal of the Day described as a finely tuned Q curve3. The Hi and Lo ranges do not overlap: the Lo band works from 120Hz to 1.2kHz and the Hi band from 850Hz to 8.5kHz, so between them they cover the guitar's spectrum from the low fundamentals up past the presence region3. That makes the pedal usable as a problem solver, not just a solo lift: a woolly neck pickup can be thinned, or a thin bridge pickup fattened, at whichever frequency the problem lives.

Power and bypass

The bypass is buffered, not true bypass4. If your board is built around true bypass switching throughout, the Two Stroke will still leave a buffer in the signal path when it is off.

Where it came from

What reviewers said

Pedal of the Day reviewed the pedal in October 2016 and called it "a versatile clean boost/EQ with a ton of options", adding that it "produces an infinite amount of tone shaping sounds, while providing a smoothness not usually present in most EQ pedals"53. The review closed with a strong verdict:

"as this just may become the most important pedal in your rig."
Pedal of the Day3

Pete Thorn published a demo in September 2016. He highlighted the parametric EQ as the pedal's distinguishing feature, comparing it to its "distortion pedal cousin" from Orange, and said the parametric approach "adds a unique feature set and versatility"6. He also described using it on a humbucker middle position into an amp sitting just on the edge of breakup, a sound that "sometimes can get a little woolly especially if you're boosting", which is exactly the case the EQ is there to fix6.

Pete Thorn demos the Orange Two Stroke

In the same video, Thorn said he used the Two Stroke on all the guitar parts on his demo track, including the bass guitar6, which makes it one for bass pedal boards to consider as well as guitar rigs. Players comparing it against fixed EQ boosts or graphic equalization pedals will find the difference in the FREQ controls: rather than sliding several fixed bands, you pick one frequency per range and move it to where the problem, or the payoff, actually is.

Videos

Orange Two Stroke Boost EQ
ProGuitarShopDemos
Orange Two Stroke Boost EQ Pedal Demo
Sweetwater

Questions

Does the Orange Two Stroke take a battery?

Yes. Orange lists the power options as a 9V battery or a 9 to 12V DC adapter with a centre negative plug. On a standard 9V supply it draws 28mA, so it is easy to run from a typical pedalboard power supply as well as a battery.

Is the Orange Two Stroke true bypass?

No. The Two Stroke uses a buffered bypass, which keeps the signal consistent through the pedal when it is off. Players who want to place it after long cable runs may see that as an advantage rather than a drawback.

What does the Oil knob do on the Two Stroke?

Oil is the volume control, and it sets the level of clean boost before the EQ section, offering up to +12dB of output. Because it sits before the EQ, the boost drives the two parametric bands rather than being shaped after them.

How much boost does the Orange Two Stroke give?

Up to +12dB of clean boost. That is enough to push an amp on the edge of breakup into distortion, lift a solo above the band, or simply fatten a clean tone, and Orange describes the boost as transparent, without added noise or colour.

What frequency range does the Hi band cover?

The Hi band's FREQ control selects frequencies from 850Hz to 8.5kHz. The Lo band covers 120Hz to 1.2kHz, and the two ranges do not overlap, so each band works a different part of the guitar's spectrum.

Can the Two Stroke be used with bass or acoustic-electric guitar?

It works with bass. Pete Thorn used it on all the guitar parts and the bass guitar on the demo track in his video review, including on a humbucker-equipped guitar pushing an amp on the edge of breakup. There is no published use with acoustic-electric guitar to point to.

Sources (6)
  1. Two Stroke Boost & EQ Pedal, Orange Music Electronic Co Ltd
  2. NAMM 2016: Orange launch two new pedals, Guitar.com, 2016-01-21
  3. Orange Amps Two Stroke Boost EQ, Pedal of the Day, 2016-10-20
  4. New Pedals: Orange Amps Two Stroke, Delicious Audio, 2016-03-13
  5. Orange Amps Getaway Driver Overdrive, Pedal of the Day, 2017-11-08
  6. Orange Two Stroke EQ/Boost, demo by Pete Thorn, youtube.com, 2016-09-29
