EarthQuaker Devices Bit Commander V2

EarthQuaker Devices Bit Commander V2

Octave and pitchAnalog
List price
$189
Key facts
TypeMonophonic analog octave synth1
MakerEarthQuaker Devices, Akron, Ohio1
SignalAll-analog6
BypassTrue bypass, electronic relay-based switching; no audio without power1
Power9V DC, 2.1mm negative center barrel, 25 mA1
Input impedance50 kΩ1
Output impedance<500 Ω1
Dimensions4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs1
WarrantyLimited lifetime warranty1

The EarthQuaker Devices Bit Commander is a monophonic analog guitar synthesizer that stacks four octaves of vintage square wave synth tones under and over the note you play1. Despite the name, it has nothing to do with digital bitcrushing: Delicious Audio's octave pedal guide is blunt about the common misconception, calling it "not a Bitcrusher, but rather an analog octave synth based on the Micro Synth"2. Feed it a single note and it can produce a ripping sub-octave two octaves down, a pulsing octave down, a lightly squared version of your base tone, and a swelling transformer-based octave up, all mixed together. In EarthQuaker's own words, the four voices "join together to make a single guitar sound like an army of olde tyme synths"1.

The circuit is the work of Jamie Stillman, and EarthQuaker calls it the company's first anti-"traditional guitar" pedal circuit3. It is all-analog, which EarthQuaker's category guide describes in plain terms: "It's an old-school analog dirt synth machine for your guitar, bass, drums, synth, or any signal it's fed"4.

What it does: an analog octave synth, not a bitcrusher

The name trips up a lot of players, so it is worth being clear about what the Bit Commander is. A bitcrusher is a digital effect that mangles a signal by reducing its sample rate or bit depth. The Bit Commander is not a bitcrusher, but rather an analog octave synth based on the Micro Synth. It is an analog effect, and its sound is based on a single square wave rather than multiple wave types, envelopes, or oscillators247.

Premier Guitar's reviewer put a fine point on the design philosophy: "Rather than get carried away with multiple wave types, envelopes, or oscillators, EarthQuaker based the Bit Commander's sound on a single square wave"7. That single-mindedness is the character of the pedal. You are not getting a full synth engine with filter sweeps and envelope shaping; you are getting square wave octaves, a tone filter, and a level control, and the sound that falls out of that.

Delicious Audio's guide breaks down the voicing the same way: two octaves down, one octave up, and a square wave doubling the base tone, with a filter that cuts high frequencies from the octave signal. It notes the pedal is monophonic but huge sounding2. For players comparing it against other EarthQuaker octave pedals, the company's own category guide walks through how it sits alongside the rest of the line4, and our octave and pitch pedals page covers the type as a whole.

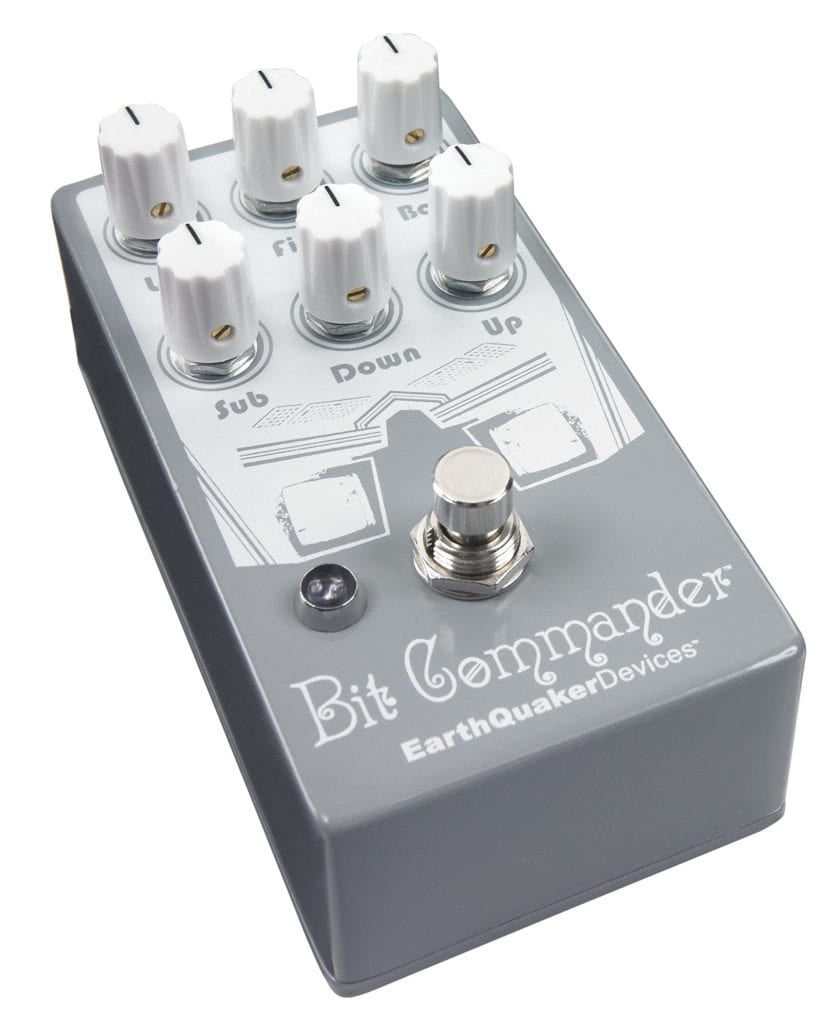

The controls

Six knobs, and each one does exactly one thing. The whole interface is what EarthQuaker's own demo materials describe as a simple interface with excellent tracking and huge attitude3.

KnobWhat it does
LevelMaster volume1
BaseSquared input signal level1
SubTwo octaves down level1
Down 1One octave down level1
Up 1One octave up level1
FilterTone control: more highs clockwise, more warmth counterclockwise1

The mix is the whole game. Run Sub and Down 1 up with Base low and you get a thick, synth-bass floor under your note. Add Up 1 and the transformer-based octave up swells on top. The Filter knob shapes the combined octave signal, rolling off high frequencies for warmth or opening clockwise for bite1.

Because the pedal is monophonic, the controls reward single-note playing. Pedal of the Day's reviewer flagged this in caps back in 2014: "REMEMBER! this pedal is MONOPHONIC meaning it only registers one note on the guitar at once"8. Chords do not track; lines do.

Power and switching

The Bit Commander takes a standard 9V DC power supply with a 2.1mm negative center barrel and draws 25 mA1. There is no battery option.

The pedal is true bypass using electronic relay-based switching, and EarthQuaker states that audio will not pass without power1. If the power supply cuts out, so does your signal, unlike a mechanically switched true bypass pedal that would pass a dry signal.

On bass

EarthQuaker has demonstrated the pedal on bass specifically. In the company's bass-focused demo, Aaron Rogers found that "with a little finesse, there's plenty of rump-shaking monophonic sub-octave to be had," and that "when mixed with a clean signal, the Bit Commander adds some blown-out subharmonic girth and handles quick runs and an open A note"6. The all-analog design is what makes that blend work6.

The low limit is worth knowing: things "can get glitchy below the 7th position E note on the A string" on bass6. In practice that means the bottom few frets of a bass's lowest strings can send the octave divider hunting, so bass players get the best results staying above that range or blending in clean signal. Our bass pedals page covers other options for the low end.

Where it came from and who uses it

The Bit Commander was designed by Jamie Stillman, who tells the circuit's story in EarthQuaker's own demo material, where the company calls it their first anti-"traditional guitar" pedal circuit3. Performer Mag profiled the pedal in 2014 and reported that all EarthQuaker pedals are true bypass and handmade in Akron, Ohio9, and the company describes itself as building guitar effects by hand in Akron1.

One documented user: Troy Van Leeuwen of Queens of the Stone Age and Gone Is Gone, who told EarthQuaker in a 2017 rig rundown that the Bit Commander "is a pedal that I used on…like, almost hal[f]" of a record10.

What reviewers said

Published reviews have been consistent about what the pedal is and is not.

  • Premier Guitar's reviewer highlighted the single-square-wave design at the heart of the sound7.
  • MusicRadar's Trevor Curwen summed up the pedal in one word: "Versatile"11.
  • Pedal of the Day's Will C emphasized the monophonic tracking as the thing players must remember8.
  • Delicious Audio's guide placed it among the notable octave pedals on the market and stressed that it is an analog octave synth rather than a bitcrusher2.
"Versatile."
Trevor Curwen, MusicRadar11

Players shopping the same territory can compare the Bit Commander against other EarthQuaker octave and pitch designs, including the Arpanoid V2, the Tentacle V2, and the Pitch Bay. The company's own octave and pitch guide covers how each of these differs in tracking, voicing, and controls4.

Videos

EarthQuaker Devices Bit Commander Guitar Synth Pedal Review by Sweetwater
Sweetwater
Earthquaker Devices Bit Commander Guitar Synthesizer | Reverb Demo Video
Reverb
Earthquaker Devices Bit Commander Synthesizer
Prymaxe

Questions

Does the Bit Commander work on bass?

Yes. EarthQuaker's own bass demo found it tracks well with a little finesse, producing a monophonic sub-octave that adds low-end weight when blended with a clean signal. It gets glitchy on notes below the 7th position E on the A string, so the lowest reaches of a four-string bass can be unreliable.

Is the EarthQuaker Bit Commander polyphonic?

No. The Bit Commander is monophonic, meaning it registers one note at a time. Play a chord and the tracking falls apart, which is normal for this kind of analog octave circuit. Single-note lines are what it is built for.

Does the Bit Commander pass signal without power?

No. It is true bypass with electronic relay-based switching, and EarthQuaker states plainly that audio will not pass without power. If your supply drops out mid-gig, the pedal goes silent along with it.

Does the Bit Commander take a battery?

No. It runs on a standard 9V DC power supply with a 2.1mm negative center barrel and draws 25 mA. There is no battery option, so it needs a spot on a powered pedalboard.

Where is the Bit Commander made?

EarthQuaker Devices builds its pedals by hand in Akron, Ohio, and Performer Mag reported the Bit Commander as handmade there in 2014. The company describes itself as building guitar effects by hand in Akron.
