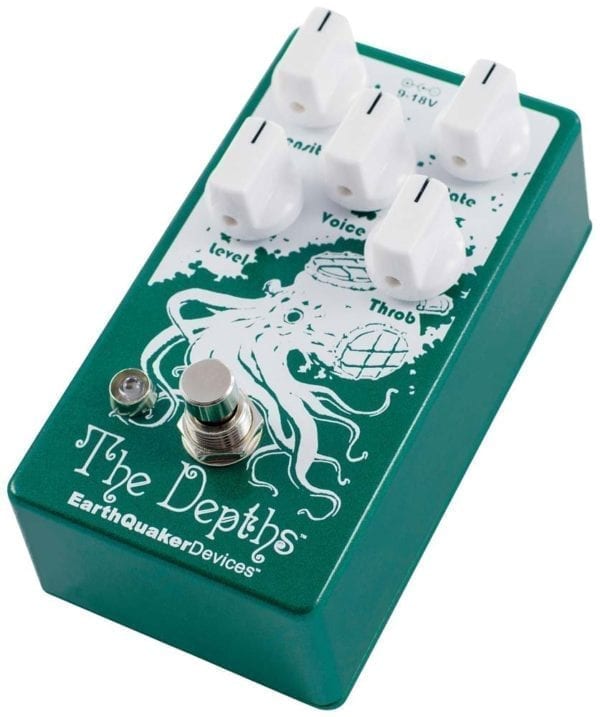

EarthQuaker Devices The Depths V2

EarthQuaker Devices The Depths V2

VibratoAnalogDiscontinued
List price
$199
Key facts
TypeAnalog Optical Vibe Machine1
MakerEarthQuaker Devices, handmade in Akron, Ohio453
Released2012; V2 announced January 201867
StatusDiscontinued early 20267
BypassFlexi-Switch relay-based true bypass, momentary and latching1
Power9V DC, 2.1mm negative center barrel, 21 mA1; can also run at 18V8
Dimensions4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs1
WarrantyLimited lifetime warranty1

The Depths is EarthQuaker Devices' take on the classic optical vibe circuit, the phase-shift modulation design behind the Univibe. It is an all-analog pedal that EarthQuaker describes as creating "a lush, phasing pulse which delivers a three-dimensional swirling sound"1. Unlike a true pitch-shifting vibrato, an optical vibe like The Depths moves the signal through light-dependent resistors and an LED, producing the swirling, phasey sweep players associate with late-1960s recordings. EarthQuaker's own blog puts it plainly: "The Depths is phase shift modulation like the Univibe"2.

The pedal is no longer made. EarthQuaker Devices discontinued it in early 2026, after releasing more than 10,000 units3.

What The Depths does

The Depths V2 is an optical vibe pedal in a compact case, built around an actual optical vibe circuit rather than a digital emulation8. EarthQuaker describes the sound as lush, pulsating and three-dimensional, and Guitar.com's launch coverage of the V2 called it "EarthQuaker Devices take on the classic optical vibe circuit"9.

Two things set it apart from many vibe pedals. First, it was optimized to work with all kinds of instruments, pickups and dirt pedals, so it can sit anywhere in a signal chain1. Second, its Throb control adds subharmonic low end, which Guitar.com flagged as "great for bass and synths"9. Delicious Audio describes it as designed to work seamlessly with guitar, bass and keyboard, and to play well with any type of pickup8.

The controls

The five knobs are arrayed in an X-shape on the face of the pedal10. EarthQuaker's product page explains what each one does1:

ControlWhat it does
RateSets the speed of the sweep.
IntensityHow subtle or intense the effect is. Counterclockwise from noon gives the more subtle, classic sounds; clockwise from noon is more drastic and intense.
VoiceDials in the overall sound. Clockwise for a fuller sound with more lows, back off for a thinner, more midrange-focused tone.
ThrobControls the low-end pulse. All the way up for more throb, dial back for less. EarthQuaker notes it works best with Voice set to a warmer tone, and is most evident on the neck pickup.
LevelVolume of the effect. Unity is around 1 o'clock; everything above that is boost.

The Voice and Throb controls are the unusual pair. Aion FX's technical analysis of the circuit explains what is under them: Voice is an external bias control for the LED in the optical circuit, and Throb reduces the bass level of the lowest-frequency phase stage7. In practice, Voice lets a player tailor the pedal to a particular instrument and pickup, which is why EarthQuaker says it allows operation anywhere in the signal chain11.

The product page also lists suggested settings with names like Classic Vibe Sound, Dripping Wax, Rotating Speakers and Smoke Filled Room1.

Power and connections

The Depths takes a standard 9V DC power supply with a 2.1mm negative center barrel, drawing 21 mA1. The circuit can also be powered at 18V, which Delicious Audio recommends for players who like extra headroom, noting that at 18V the effect sounds slightly different8. The original 2013 press release described the difference in similar terms: 9V for warmer tones, up to 18V for a stiffer tone with more headroom and sparkle11. Vintage Guitar's launch coverage reported the original could run on a 9-volt battery or a wall adapter up to 18 volts12.

Input impedance is 1 MΩ and output impedance is under 1 kΩ1.

There is no tap tempo and no expression pedal input. Delicious Audio's buying guide flagged this as the pedal's main omission next to its competitors8, and Premier Guitar's review likewise noted "No expression pedal option."10

History: V1 to V2, and the end

The Depths was originally released in 20127. Premier Guitar and Guitar World covered its wider launch in mid-2013, when it shipped alongside the Arpanoid pitch arpeggiator, handmade in Akron, Ohio, at a MAP price of $195115. Premier Guitar's 2021 review listed the street price at $19510, and Delicious Audio's 2024 buying guide gave $1998.

At NAMM 2018, EarthQuaker upgraded five of its popular pedals to V2 specs, and The Depths was one of them, gaining soft-touch relay switching6. EarthQuaker's own account: "The Depths grew from V1 into V2 with the addition of Flexi-Switch technology"3. The V2's updated Flexi-Switch delivers either momentary or latching operation from the single footswitch8. Aion FX notes the V2's addition of the relay bypass system as the key change from V17.

The pedal was discontinued in early 20267. EarthQuaker marked the end with a farewell post on its blog, describing The Depths as "a treasured member of the EarthQuaker family" and noting that over 10,000 units had been released3. The reason was parts supply: it became unsustainable to secure the light dependent resistors the optical circuit relied on. The product page now states plainly, "THIS DEVICE IS NO LONGER IN PRODUCTION"1.

What reviewers said

Premier Guitar reviewed the pedal in August 2021 and was positive, listing as pros its "Deep, beautifully countered modulations. Great speed and depth range. Powerful tone-shaping controls."10 The same review noted the lack of an expression pedal option as a limitation10.

Delicious Audio's 2024 roundup of vibe pedals concluded that "The Depths is a pedal that seems to get universally good reviews," while pointing out that it still does not address tap tempo and expression input functionality8.

"Deep, beautifully countered modulations. Great speed and depth range. Powerful tone-shaping controls."
Premier Guitar review, August 202110

Players looking for a current-production alternative in the same family can compare EarthQuaker's own Aqueduct, a true pitch-shifting vibrato rather than an optical vibe, or other optical vibe pedals such as the Fulltone MDV3 and Voodoo Lab Micro Vibe.

Videos

EarthQuaker Devices The Depths optical vibe machine
EarthQuakerDevices
The Depths Analog Optical Vibe Machine Video Manual | EarthQuaker Devices
EarthQuakerDevices
Earthquaker Devices The Depths
Prymaxe

Questions

Does The Depths have an expression input or tap tempo?

No. The Depths V2 has no tap tempo and no expression pedal input, a point Delicious Audio's buying guide noted as a gap. Speed is set only with the Rate knob, so players who want to sync the effect to a tempo have to dial it in by ear.

Does The Depths sound different at 18 volts?

Yes, slightly. The circuit can be powered at 9V or 18V, and Delicious Audio reports that at 18V the effect sounds slightly different. The original press release described 9V as giving warmer tones and 18V as a stiffer tone with more headroom and sparkle.

Is The Depths V2 true bypass?

Yes. The V2 uses EarthQuaker's Flexi-Switch Technology, a relay-based true bypass switching style that allows both momentary and latching operation from the same footswitch. The original V1 was also advertised as true bypass.

Does The Depths work on bass?

Yes. EarthQuaker optimized it for use with all kinds of instruments and pickups, and Delicious Audio describes it as designed to work seamlessly with guitar, bass and keyboard. The Throb control, which adds subharmonic low end, was singled out as great for bass and synths.

Is The Depths discontinued?

Yes. EarthQuaker Devices discontinued The Depths in early 2026 after more than 10,000 units were made. The company said it became unsustainable to secure the light dependent resistors the optical circuit relied on.

Can The Depths run on a 9V battery?

The original Depths could be powered by a 9-volt battery or a wall adapter up to 18 volts, according to Vintage Guitar's launch coverage. The current product page specifies only a standard 9V DC power supply with a 2.1mm negative center barrel.
