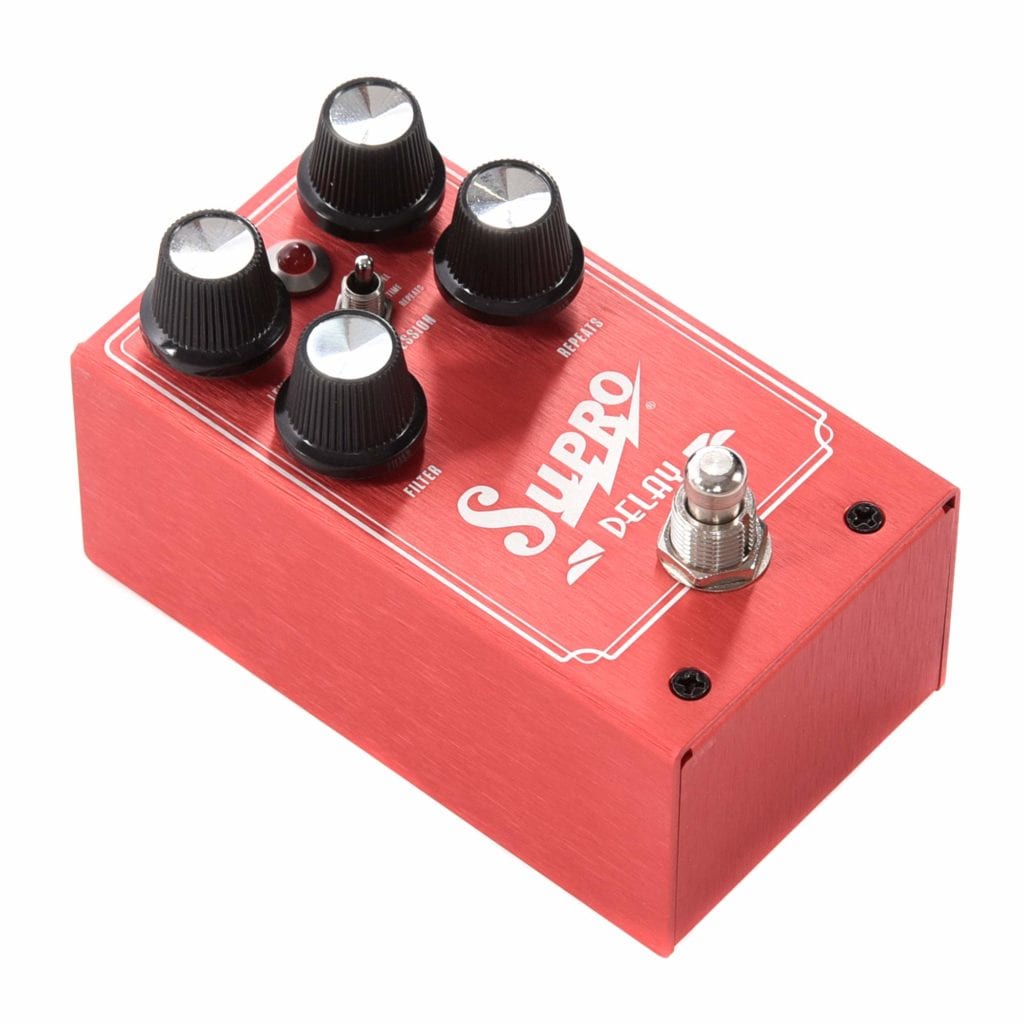

Supro Delay

Supro Delay

DelayAnalog
List price
$219
Key facts
TypeAnalog Delay with Filter1
MakerSupro1
AnnouncedJanuary 2019, shipping at launch2
CircuitAnalog, pair of high-voltage MN3005 bucket brigade IC chips1
Delay range20ms to 600ms42
BypassBuffered1
Power9VDC, 100mA1
Input impedance10M1
Output impedance150 ohms1
FootswitchesOne5

The Supro Delay is an all-analog delay pedal from Supro, built around a pair of high-voltage MN3005 bucket brigade IC chips and capable of up to 600ms of delay time1. Supro calls it the company's flagship pedal and describes its sound as Hi-Fi Analog Echo1. What sets it apart from most analog delays is a Filter knob that moves from low-pass to band-pass functions, so one control spans dark, warm, murky repeats and crisp, bright tape-echo tones1.

The pedal was announced in January 2019 and was shipping at launch2. It was designed by Howard Davis, the engineer behind the late-1970s EHX Deluxe Memory Man and the Pigtronix Echolution, with sound design by Thomas Elliott and David Koltai12.

An analog delay with a filter

The Supro Delay uses a pair of new-production MN3005 "bucket brigade" IC chips to deliver sounds ranging from 20ms slapback up to 600ms of what Delicious Audio called "buttery vintage delay"5. Bucket brigade (BBD) chips pass your signal along a chain of capacitors a step at a time, which is what makes an analog delay analog: each repeat degrades slightly in bandwidth, giving the darker, murkier character players associate with the format.

Supro's choice of chip matters here. The MN3005 chips run at high voltage, and Delicious Audio notes they are "far superior in fidelity to the low-voltage MN32XX series chips more commonly used in modern stompboxes"5. The pedal also uses internal voltage-doubling on its standard 9VDC supply, which Supro credits for its headroom in a compact box5.

The Filter control is the pedal's distinguishing feature. Delicious Audio explains what it does for the repeats51:

"This unique filter design provides both the dark and murky echoes associated with BBD analog delays as well as bright tape echo sounds that evolve over time with extended repeats5."
Paolo De Gregorio, Delicious Audio5

In practice, that means one knob takes you from the traditional dark analog repeat to a brighter, tape-like echo, with band-pass settings in between that thin the repeats so they sit around your dry tone rather than on top of it15.

The pedal also has two internally switchable functions: Dry Kill and Trails5. Dry Kill removes the dry signal, useful if you want only echoes feeding another pedal or a mixer. Trails lets repeats continue ringing after you bypass the pedal. Both are set inside the enclosure rather than from the top panel.

The controls

The top panel is deliberately simple: four knobs, one footswitch, and a 3-mode expression pedal input5.

ControlWhat it does
TimeSets delay time, from 20ms slapback to 600ms54
RepeatsSets the number of repeats5
LevelSets the level of the echo5
FilterSweeps from low-pass to band-pass functions, from dark, warm and murky tones to crisp, bright tape echoes1

The expression input is assignable. Supro says it "provides the player with the ability to switch between Repeats, Time, and Level while maintaining custom knob settings"1. That means you can, for example, leave the Time knob where you set it but sweep delay time from an expression pedal for pitch-bending self-oscillation effects, or ramp the repeats by foot during a solo.

Power comes from a standard 9VDC supply drawing 100mA1. The enclosure is a brushed-finish box measuring 12cm x 6.5cm x 6.5cm, about 5" x 2.6" x 2.6"12.

The Supro Delay is buffered bypass, not true bypass1, and its 100mA draw1 is higher than many compact analog pedals, so plan for it on a powered pedalboard rather than a battery or a small daisy chain.

Where it came from and what reviewers said

Supro announced the pedal on January 15, 2019, describing an all-analog MN3005 design by Howard Davis with 20ms minimum and 600ms maximum delay time, shipping immediately21. MusicPlayers.com reported the launch price as $249 USD3; Supro's later product page lists $2191. Gearnews covered the announcement at NAMM 2019 and noted the design "is based on new-production MN3005 bucket brigade IC chips"4.

The pedal's circuit lineage is a big part of its story. Howard Davis is the engineer behind the late-1970s Electro-Harmonix Deluxe Memory Man, one of the most influential analog delays ever made, and the Pigtronix Echolution15. Sound design was handled by Thomas Elliott and David Koltai2.

On That Pedal Show's Pick'N'Mix episode, Dan and Mick put the Supro Delay through its paces and highlighted the Filter control as its strength67:

"being able to affect the tone of it I think is a fantastic addition"7
Dan, That Pedal Show7

The presenters made the point that the filter lets the delay sit underneath your sound, unlike delays where you are stuck with really dark repeats7.

That Pedal Show Pick'N'Mix: Supro Delay demo

Questions

What chips does the Supro Delay use?

It uses a pair of new-production MN3005 bucket brigade IC chips, run at high voltage. Supro and press coverage both describe these high-voltage MN3005 chips as higher in fidelity than the low-voltage MN32XX series chips more commonly found in modern analog delay pedals.

Is the Supro Delay true bypass?

No. Supro lists the pedal as buffered bypass. Players who want the pedal out of the chain entirely will notice the buffer stays in the signal path, which is worth knowing when planning a pedalboard order.

Does the Supro Delay have trails?

Yes. Trails is one of two internally switchable functions, alongside Dry Kill. Both are set with internal switches rather than a front-panel control, so you decide once whether echoes continue after bypass.

What can an expression pedal control on the Supro Delay?

The expression input is assignable to Repeats, Time, or Level, and you can switch between those targets while keeping your custom knob settings. That makes it possible to sweep delay time for pitch-bend effects or ramp repeats by foot.

What is the delay range of the Supro Delay?

Delay time runs from 20ms, tight slapback territory, up to 600ms of longer vintage-style repeats. The range comes from the pair of MN3005 bucket brigade chips, which Supro says are capable of producing up to 600ms of delay time.

Sources (7)
  1. Delay - Supro USA, Supro USA, 2022-08-25
  2. Supro Announces New Delay Pedal, Premier Guitar, 2019-01-15
  3. Supro launches analog Delay pedal loaded with MN3005 chips, MusicPlayers.com, 2019-01-16
  4. NAMM 2019: Can the new Supro Delay pedal stand out from the crowd?, gearnews.com, 2019-01-16
  5. Supro Delay, Delicious Audio, 2019-03-11
  6. Danelectro Eisenhower, Snake Oil Marvellous Engine, Supro Delay, Meris Mercury 7, TPS Pick’N’Mix, That Pedal Show
  7. Danelectro Eisenhower, Snake Oil Marvellous Engine, Supro Delay, Meris Mercury 7, That Pedal Show (YouTube), 2019-05-06
