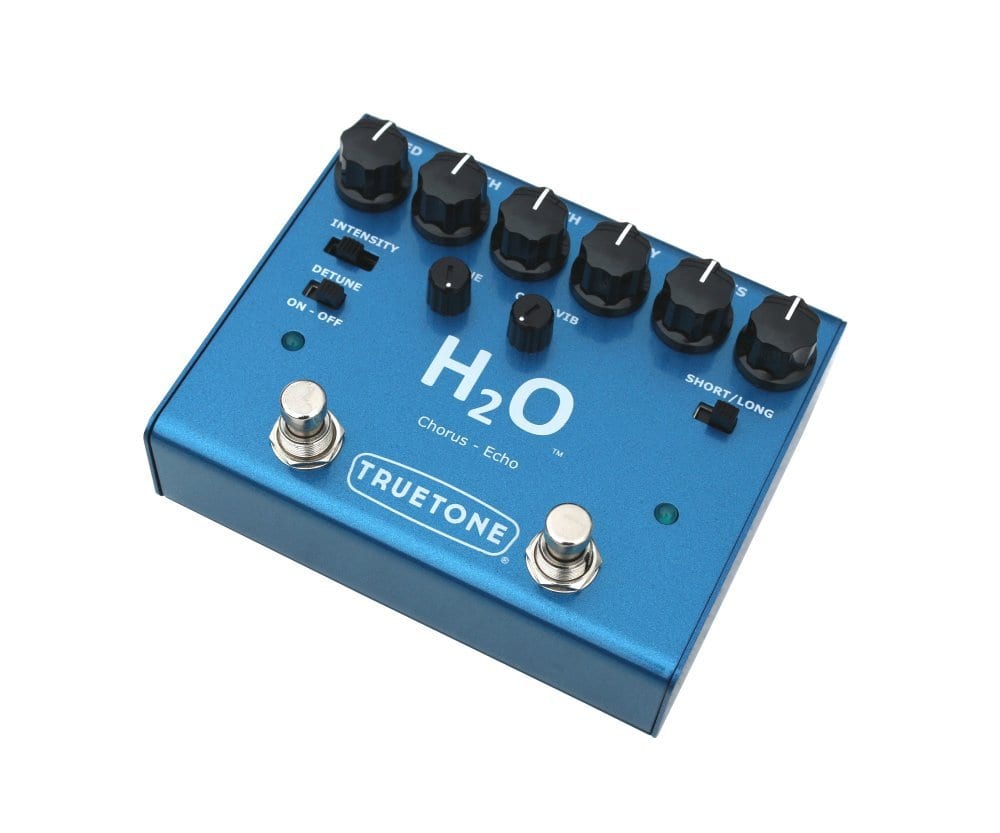

The Truetone V3 H2O is a dual-channel pedal that puts analog chorus and vibrato on its left channel and a hybrid-analog echo on its right, in a single pedalboard-friendly enclosure1. Truetone describes the modulation side as delivering "the kind of modulation that makes clean tones breathe and sustained notes shimmer," and says of the echo that its hybrid-analog design "adds a warmth that digital delay rarely captures"1.
The pedal is an archived product, listed in Truetone's V3 Series archive, so it is no longer part of the maker's current lineup1.
What it does
The left channel handles chorus and vibrato, and you switch between those two modes on that channel1. The right channel is the echo side, using a hybrid-analog circuit rather than a fully digital one1. Having both effects in one box means a player can cover modulation and repeats without giving up two pedalboard spaces, and the dual-channel design goes further than most two-in-one pedals by keeping the two sides electrically separate.
Controls, jacks and bypass options

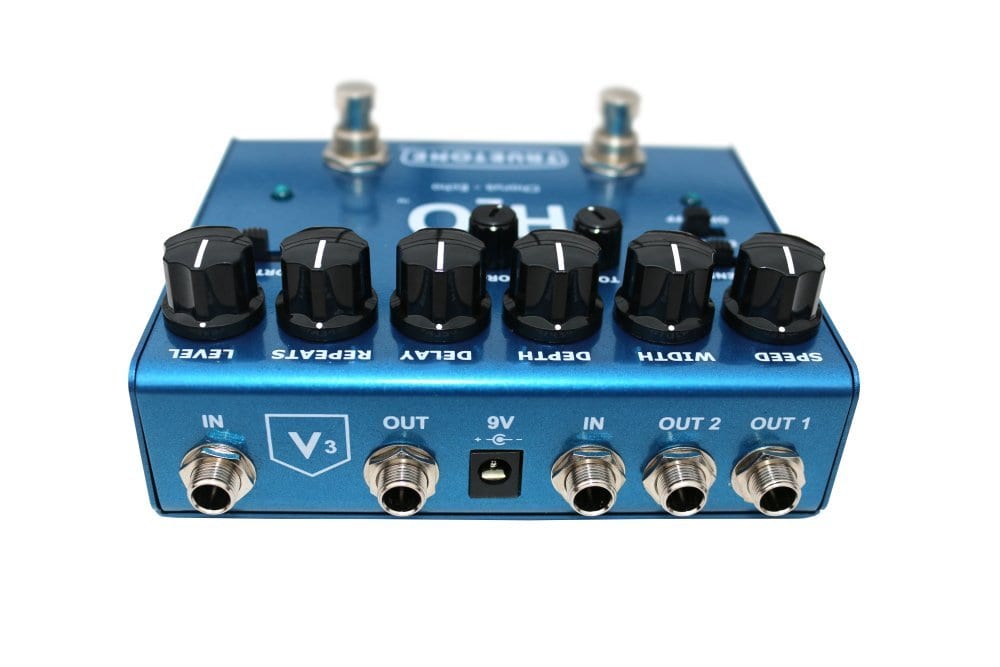

The H2O's input and output jacks are front-mounted, with separate inputs and outputs for each channel1. Truetone says this layout "allow[s] either loop integration or signal chain reordering," meaning each channel can sit in a different loop of a switching system, or the order of chorus and echo in your chain can be rearranged to taste1.
Each channel's bypass is independently selectable between true bypass and buffered bypass using Truetone's Pure Tone circuit1. That choice matters in practice: true bypass leaves the signal untouched when the channel is off, while the buffered option keeps a strong signal through long cable runs.
Other hardware details from Truetone:
- Footswitches: Forever Footswitch, rated for 10 million actuations, with gold-plated relay contacts1
- Included in the box: a black velvet carrying bag1
Videos
Truetone
kurt streuber
Truetone
Questions
Is the Truetone V3 H2O still made?
No. Truetone lists the V3 H2O in its V3 Series archive, so it is no longer a current product in the lineup. It may still be found secondhand or from remaining retailer stock.
Is the V3 H2O true bypass or buffered?
It can be either. Each channel has a selectable bypass mode: true bypass, or buffered bypass using Truetone's Pure Tone buffer circuit. Because the two channels are independent, you can set one each way.
How much current does the V3 H2O draw?
Truetone rates the V3 H2O at a maximum current draw of 56mA. That is modest by modern pedal standards and comparable to a typical analog chorus plus delay pair.
Can the chorus and echo channels be used separately?
Yes. The two channels have separate front-mounted inputs and outputs, so each can run as its own loop in a larger signal chain, or they can be used together in one chain.
