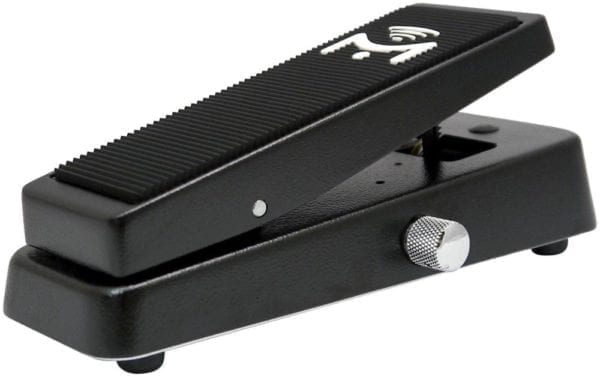

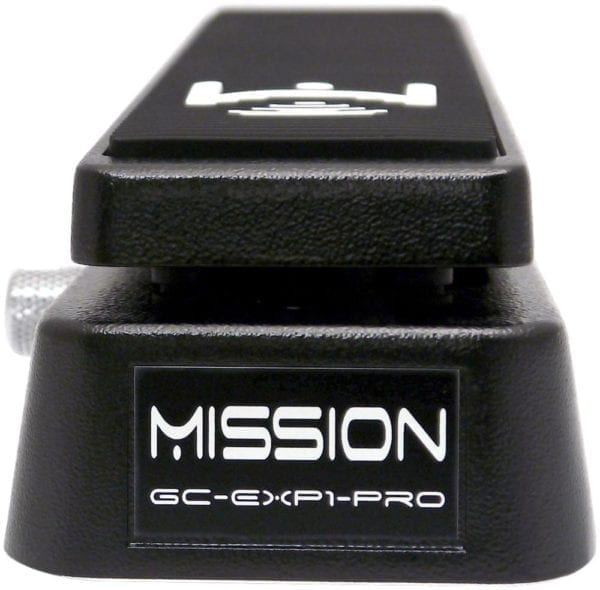

The Mission Engineering EXP1-PRO is a passive analog expression pedal made by Mission Engineering. It does not process or generate sound itself: instead it lets you control a parameter on another device, such as a delay time, a pitch shift or a filter sweep, by rocking the pedal with your foot. Because it is built around a passive potentiometer, it needs no power at all1.
How it works and how it is controlled
An expression pedal connects to an effects unit's expression input with a standard instrument cable. The device sends a control voltage or resistance down the cable, and the pedal's potentiometer varies that value as you rock the treadle. The connected device then maps that value to whatever parameter you assigned, so the pedal becomes a hands-free controller for one knob of your choosing.
The EXP1-PRO gives you two controls:
| Control | What it does |
|---|---|
| Pedal sweep | The foot treadle, which varies the potentiometer across its range |
| Input level (0 to 80%) | Sets how much of the input range the pedal uses |
The input level control, adjustable from 0 to 80%, lets you match the pedal's output range to what the connected device expects, which matters because different makers use different expression ranges1.
Power and connections
Because the circuit is a passive potentiometer, the EXP1-PRO requires no power supply, no battery and no current draw. It connects through a single 1/4" output, so it drives one device at a time. Players who want to control several devices from one pedal would need a multi-output controller such as Mission Engineering's Expressionator1.
Build and origin
The EXP1-PRO is an analog unit built around a passive potentiometer circuit, with two controls: the pedal sweep and an input level control settable from 0 to 80%1.
Questions
Does the Mission Engineering EXP1-PRO need power?
No. The EXP1-PRO is a passive analog expression pedal built around a passive potentiometer, so it needs no power supply or battery. It works entirely from the signal the connected device sends through its single 1/4 inch output.
Where is the EXP1-PRO made?
The Mission Engineering EXP1-PRO is manufactured in the USA.
How heavy is the Mission EXP1-PRO?
The EXP1-PRO weighs 3.2 lbs and measures 9 x 4 x 3 inches, so it is a solidly built pedal that stays put underfoot on a pedalboard.
