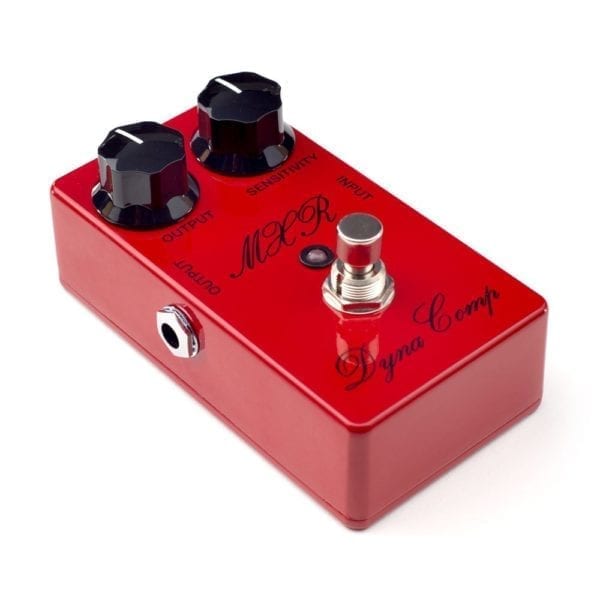

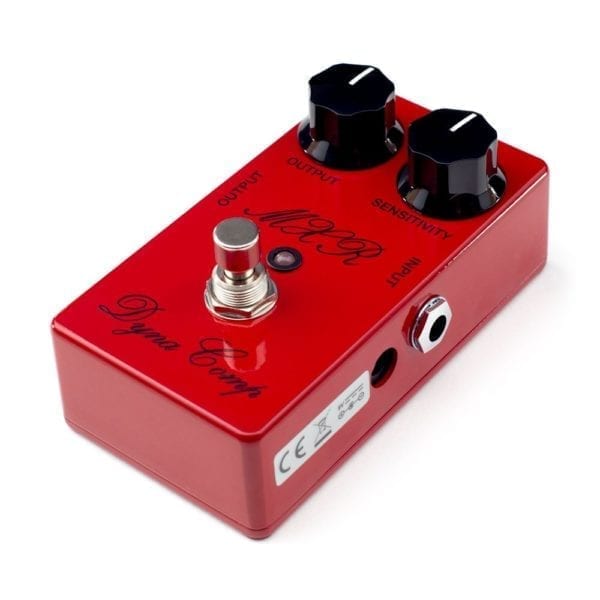

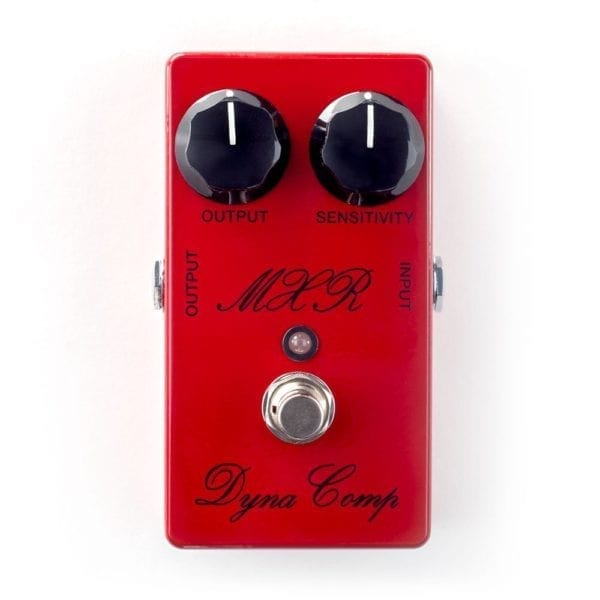

MXR Script Dyna Comp

MXR Script Dyna Comp

Compressor
Key facts
TypeCompressor pedal1
MakerMXR (Jim Dunlop)1
Model numberCSP102SL1
CircuitAnalog, built around the CA3080 "metal can" IC1
Power9-volt battery, Dunlop ECB003 9-volt adapter, or Dunlop DC Brick, Iso-Brick or Mini Iso-Brick1
Extras over the originalBypass status LED and AC power jack1

The MXR Script Dyna Comp is a compressor pedal made by MXR, part of the company's Custom Shop line under model number CSP102SL1. It is a reissue-style take on the original 1970s Dyna Comp: MXR says it is "spec'd from our own 1976 Dyna Comp Compressor" and built around the rare CA3080 "metal can" integrated circuit1.

Like the original Dyna Comp, it is aimed at the classic two-knob approach to compression. MXR describes the Dyna Comp lineage as "famous for its first-rate, no-nonsense approach to tightening up your guitar signal and creating rich, full-bodied sustain"1.

What it does

A compressor evens out the volume of your guitar signal, raising quiet notes and taming loud ones, which tightens the sound and adds sustain. The Script Dyna Comp follows the original Dyna Comp recipe for this, but with the vintage CA3080 chip at its heart. MXR says that chip "yields quieter operation, greater transparency, and increased dynamic range"1, meaning less background hiss, less of the pumping squash associated with heavy compression, and more of the pick attack coming through.

Dunlop's own history of the Dyna Comp describes the CSP102SL as "modeled on the circuitry of the classic compressor pedal as first released by MXR"2, which is the design players associate with the script-logo era of the 1970s.

How it differs from the M102 Dyna Comp

The standard MXR Dyna Comp (M102) is the regular production version of the circuit. The Script Dyna Comp differs in three ways the maker identifies1:

  • It is spec'd from MXR's own 1976 Dyna Comp Compressor rather than the modern production circuit1.
  • It uses the rare CA3080 "metal can" IC, which MXR credits with quieter operation, greater transparency and increased dynamic range1.
  • It adds a bypass status LED and an AC power jack, conveniences the original 1970s pedal lacked1.

Players comparing it against other members of the MXR compressor range can also look at the Dyna Comp Mini, the Dyna Comp Deluxe and the Custom Comp, each of which takes the same basic idea in a different direction.

Power

The pedal runs on a 9-volt battery, a Dunlop ECB003 9-volt adapter, or Dunlop's DC Brick, Iso-Brick and Mini Iso-Brick power supplies1. The battery option means it can run on a board without a power supply, and the AC jack means you do not have to unplug the input to save battery as you would on a pedal with no power connector.

Videos

All-About the Vintage MXR Script Logo Dyna Comp - Ask Zac 68
Ask Zac
MXR '76 Vintage Dyna Comp
ProGuitarShopDemos
What Compressors should I Buy - EP398
Budda Guedes

Questions

Does the MXR Script Dyna Comp take a battery?

Yes. MXR states it can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or Dunlop's DC Brick, Iso-Brick and Mini Iso-Brick power supplies. The AC power jack is one of the modern conveniences the pedal adds over the original 1976 design.

What chip is in the MXR Script Dyna Comp?

It is built around the rare CA3080 metal can integrated circuit. MXR says this chip yields quieter operation, greater transparency and increased dynamic range compared with the standard circuit.

Is the Script Dyna Comp different from the M102 Dyna Comp?

Yes. The Script Dyna Comp (model CSP102SL) is spec'd from MXR's own 1976 Dyna Comp Compressor and uses the rare CA3080 metal can IC, while the standard M102 Dyna Comp is the regular production version of the circuit. The Script version also adds a bypass status LED and an AC power jack.

Sources (2)
  1. MXR® SCRIPT DYNA COMP® COMPRESSOR, Dunlop (jimdunlop.com)
  2. A Dyna Comp-rehensive History, Dunlop (lifestyle.jimdunlop.com), 2018-10-25
