Source Audio Dual Expression

Source Audio Dual Expression

Expression
List price
$119
Key facts
TypeExpression pedal1
MakerSource Audio1
ReleasedShipping as of May 20122
OutputsTwo isolated TRS expression outputs; Output 1 also takes a 1/8 inch four conductor sensor cable1
EnclosureCast aluminum1
Dimensions10 in x 4 in x 3 in (25.4cm x 10.2cm x 7.6cm)1

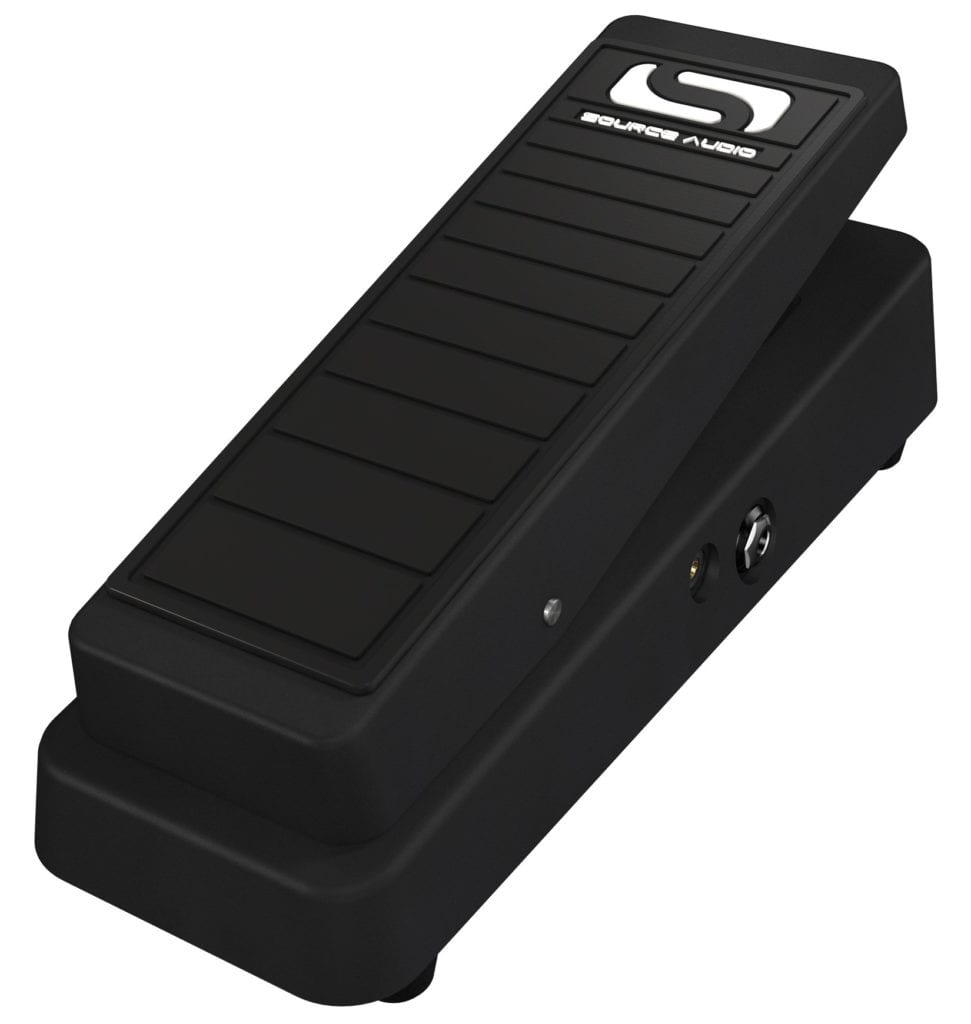

The Source Audio Dual Expression is an expression pedal from Source Audio built to drive effects from a single treadle. Its defining feature is a pair of isolated TRS expression outputs, so you can control two effects units at the same time, plus a sensor output that plugs straight into Source Audio's own Hot Hand and Soundblox pedals. Source Audio describes it as delivering "precision response and smooth action in a durable cast aluminum housing"1.

The pedal began shipping in May 2012, with No Treble reporting a street price of around $109 at launch2. Source Audio's current list price is $119.001.

One treadle, two isolated outputs

Most expression pedals have a single output, which means one treadle controls one effect. The Dual Expression instead gives you two isolated TRS outputs, which Source Audio says makes "simultaneous control over multiple effect pedals or rack systems" possible1. Because the outputs are isolated, the two controlled devices do not interact or load each other through the pedal.

The two outputs work differently:

OutputConnectionWhat it does
Output 11/4 inch TRS cable, or 4 conductor Soundblox compatible 1/8 inch sensor cableSends the expression signal to a standard expression input or a Soundblox sensor input1
Output 21/4 inch TRS cableSends the expression signal to a second effects unit1

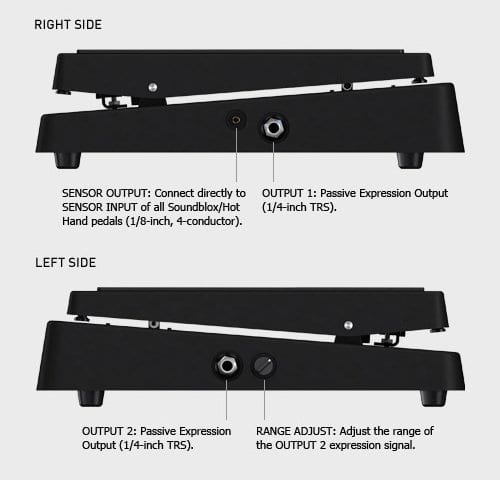

The sensor output and Hot Hand connection

Output 1 doubles as the Sensor Output, a 1/8 inch four conductor jack compatible with all Soundblox, Soundblox 2 and Soundblox Pro pedals1. Source Audio says this output "connects directly to any Hot Hand®, Soundblox®, Soundblox 2, or Soundblox Pro pedal for real-time control over filter sweeps, effect modulation, LFO speeds, wet/dry mixes, drive levels and more"1. In other words, the same treadle that drives a conventional pedal through the TRS jack can drive a Soundblox filter or modulation pedal through the sensor cable, which is a wiring scheme most other expression pedals do not offer. Source Audio later expanded on this idea with the Source Audio Reflex Universal Expression Controller, a programmable pedal with three expression/CV outputs, MIDI and USB connectivity.

Compatibility and the Range knob

Source Audio states the pedal is compatible with the very common Boss/Roland style, tip hot, expression input1. That covers the expression jacks on most Boss effects units and loopers, as well as pedals from other makers that follow the same wiring.

The single control on the pedal is the Range Adjust Knob, which "sets the bottom point of the expression range"1. Turning it raises the value the controlled parameter reaches at the heel position, so a full toe down sweep still reaches the pedal's maximum but the low end of the travel is limited. This is handy when an effect's full range is too wide, for example a wah or filter whose lowest setting is unusable. The same idea appears on other dual expression pedals, such as the LEHLE Dual Expression, which gearnews.com notes also provides two isolated TRS outputs3, and the Electro-Harmonix Dual Expression Pedal, whose range knob likewise adjusts the minimum setting of the pedal.

Videos

SOURCE AUDIO VENTRIS "Shimmer" w Source Audio SA 161 Expression pedal Part 2
PMTluke
Source Audio SA161: Double Your Expression Power!
CAM Compares

Questions

Does the Source Audio Dual Expression work with Boss pedals?

Yes. Source Audio states the pedal is compatible with the very common Boss and Roland style, tip hot, expression input. That covers the expression inputs found on most Boss effects units, so it can drive Boss gear as well as other tip hot pedals.

Can the Source Audio Dual Expression connect to a Hot Hand or Soundblox pedal?

Yes. Output 1 doubles as a Sensor Output, a 1/8 inch four conductor jack that connects directly to any Hot Hand, Soundblox, Soundblox 2 or Soundblox Pro pedal for real time control of filter sweeps, modulation, LFO speeds, wet/dry mixes and drive levels.

What does the range knob on the Source Audio Dual Expression do?

The Range Adjust Knob sets the bottom point of the expression range. In practice that means you can limit how far down the heel position takes the controlled parameter, which is useful when a pedal's full sweep is too much for a particular effect.

How big is the Source Audio Dual Expression?

It measures 10 inches long by 4 inches wide by 3 inches high, or 25.4cm by 10.2cm by 7.6cm, in a cast aluminum housing. That is a full size treadle footprint, so plan pedalboard space accordingly.

Sources (3)
  1. Dual Expression Pedal, Source Audio
  2. Source Audio Now Shipping Dual Expression Pedal, No Treble, 2012-05-18
  3. The 6 Best Expression Pedals: Taking your Effects to the Next Level, gearnews.com, 2026-02-02
