Pigtronix Echolution 2 Ultra Pro

Pigtronix Echolution 2 Ultra Pro

DelayDigital
List price
$449
Key facts
TypeMulti-tap stereo modulation delay pedal1
MakerPigtronix4
ReleasedAugust 20153
SignalDigital delay, true stereo processing, 24-bit sound24
Delay timeUp to 12 seconds2
Presets60, editable and storable24
Power18V power supply included; no battery option2
I/OStereo inputs and outputs, MIDI In/Out, USB, expression pedal socket41

The Pigtronix Echolution 2 Ultra Pro is a multi-tap stereo modulation delay pedal: a digital delay with true stereo processing and 12 seconds of delay time, built around customizable filter, LFO and pitch-shifting options, expression pedal and envelope control of each knob, and complete MIDI control of every function12. Pigtronix released it in August 2015 at a street price of $449, as the replacement for the Echolution 2 Deluxe23. It is a deep, programmable machine rather than a simple echo box: Premier Guitar called it "one of the most powerful delay stompboxes ever"2.

What it is and what it does to your sound

The Ultra Pro is a dual multi-tap delay pedal, and you can create smooth pitch change effects by altering the delay time4. The tap tempo and MIDI-controlled dual delays can be set to pitch shift by any musical interval within an octave3. As a stereo unit, it works comfortably with stereo effects or a dual-amp setup, and in stereo you can choose ping-pong mode for echoes that ricochet back and forth between the left and right channels24.

The design pairs analog tone shaping with digital signal processing, and the pedal is built to work with both line level and instrument sources, with high headroom and low noise operation, plus an all analog dry signal path51. Bass Musician Magazine, including it in a bass pedal roundup, noted that it maintains the bass's natural sound quality even with heavy digital delay in use6.

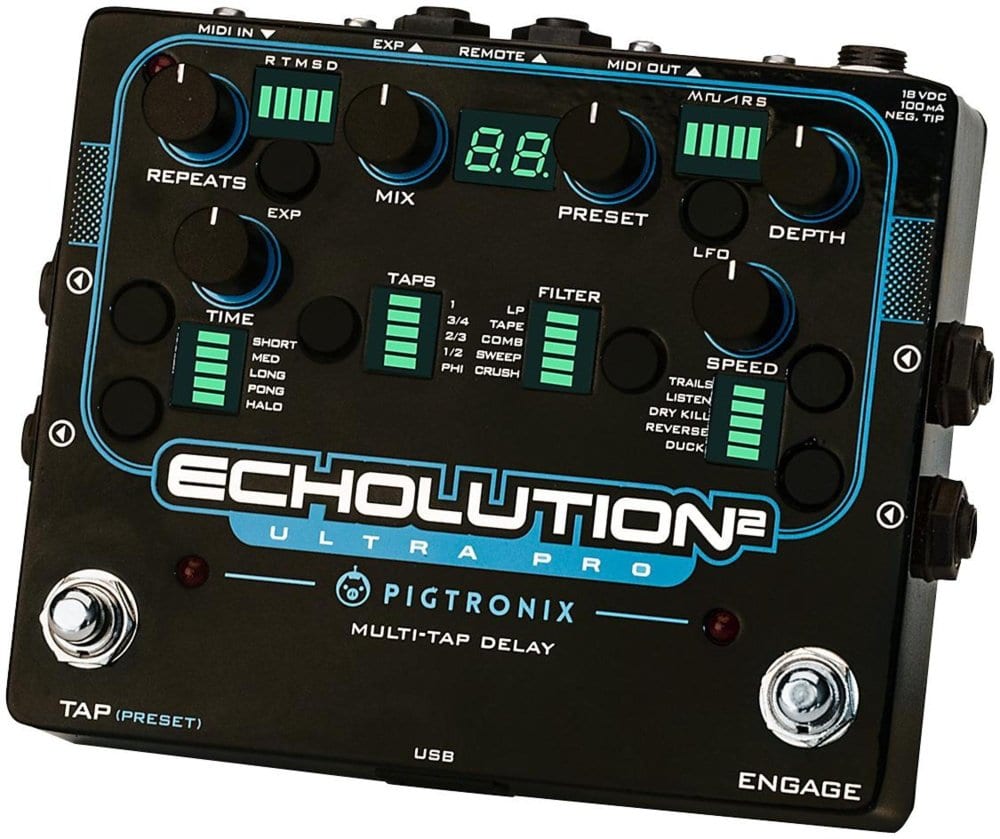

The interface is dense: 16 knobs and switches, six ladder-style LEDs and a two-digit preset readout2. Guitar.com counted six knobs, eight buttons, two footswitches, six banks of multi-segment LEDs, MIDI In/Out and a USB port4. The tap-tempo footswitch is a soft-touch, relay-style switch, with taps divisible by various time ratios2.

Filters, LFO modulation and pitch shifting

The delay color is shaped by eight filter options, including full-frequency echoes, warm low-pass filtering, a tape simulator with realistic-sounding distortion, and a crush mode for blown-out, bit-crushed tones2. Guitar.com described the filter set as four filters, low pass, tape, comb and sweep, with any of the first three combinable with the sweep filter, modulated by the LFO4.

Sound-shaping sectionWhat it offers
FiltersEight options: full-frequency, low pass, tape simulator, comb, sweep, crush mode and more24
LFO modulationEight modulation waveforms, from subtle simulated tape wobble to seasick swoops2
Pitch shiftingDual delays pitch-shift by any musical interval within an octave3
Bit-crushingOnboard bit-crushing function for deliberately trashy tones2

The series also carries features inherited from the Echolution 2 line: any two subdivisions of the master delay time can be selected to create polyrhythmic multi-tap patterns, including the Golden Ratio, and the wider family adds freeze, reverse, bit-crushing and cascading octave effects through the HALO and JUMP functions5.

Presets, MIDI and expression control

The Ultra Pro stores 60 presets, which can be edited and stored, and it ships loaded with 60 Pigtronix presets as a starting point245. Sounds can be recalled using the footswitches or the optional Echolution 2 Remote Switch, which gives access to presets on the fly78.

Control options run wide:

  • Expression pedal: an expression pedal socket lets you map any parameter for live control; an expression pedal can control delay time, echo regeneration, wet/dry mix, or LFO speed and depth42
  • Envelope control: envelope detection circuitry can be mapped to the knobs, with the five main parameters (Repeats, Delay Time, Delay Mix, Modulation Speed and Modulation Depth) supporting independent mapping910
  • MIDI: every function can be controlled via MIDI, through rear-panel MIDI in and out jacks42
  • Tap tempo: the relay-style tap-tempo switch gives extensive control over the delay function62

The MIDI jacks let you alter sounds from other controllers, sync the Ultra Pro's delay and LFO times to external clocks, or use the pedal's clock to drive other time-based effects2. Disaster Area Designs lists the Echolution 2 among its supported MIDI devices11. Advanced boot options include MIDI clock in, a 6dB boost, non-pitched MIDI tracking and stereo output phase inversion4.

For computer editing, there is a free Mac/PC editor, and the Ultra Pro's improved USB port connects to the editor software43. Guitar Interactive reported the PC/Mac application supports the platform's sound design potential1.

The Ultra Pro runs on the included 18V power supply and has no battery option, so it needs its own supply on a pedalboard rather than sharing a daisy chain2.

Where it came from

The Echolution 2 line began with the fully programmable Echolution 2 and Echolution 2 Deluxe, which followed in 2013 and began shipping as Pigtronix's flagship delay system95. The original Echolution 2 created echoes from 10ms up to 10 seconds through a 24-bit, variable-clock, full-stereo delay line57. A 2.0 firmware and app update in 2014 expanded the pedal's capabilities10.

The Filter Pro, according to the manufacturer, has the processing power of the Ultra Pro with a simpler set of controls: Guitar Interactive described it as all the processing power and flexibility of the Ultra Pro with a streamlined user interface for stage use21.

What reviewers said

Premier Guitar's review was broadly positive, listing as pros that the pedal is powerful and versatile, with stellar sound quality, extensive real-time control, solid modulation effects and a cool bit-crushed distortion, plus the included Mac/PC editing app2. On sound, the reviewer wrote:

"The sound quality is superb, unless you mangle it with the onboard bit-crushing function, in which case it's superbly trashy."
Premier Guitar2

The same review flagged the downsides: a complex interface that won't suit some players, and no mobile editing app2. It called the Ultra Pro almost absurdly powerful for a compact stompbox, with one of the most complex stompbox interfaces you'll find, and judged its filter, LFO and distortion controls equally adept at mimicking analog delays and concocting wild new colors2.

Guitar.com's verdict was that "the Echolution 2 Ultra Pro proves to be a genuinely awesome tool for manipulating and modulating delays," with 24-bit sound the reviewer found impossible to fault4. Bass Musician Magazine called it a delay pedal that "isn't your ordinary delay pedal," noting its tap-tempo switch and its preservation of the bass's natural sound quality6.

Videos

Pigtronix Echolution 2 Ultra Pro
ProGuitarShopDemos
Review Demo - Pigtronix Echolution2 Ultra Pro
Premier Guitar
SNAMM '15 - Pigtronix Echolution 2 Ultra Pro & Echolution 2 Filter Pro Demos
Premier Guitar

Questions

What is the difference between the Echolution 2 Ultra Pro and Filter Pro?

The Filter Pro has the same processing power as the Ultra Pro but a simpler set of controls, according to Pigtronix. It was positioned as a streamlined user interface for stage use, while the Ultra Pro carries the full interface with 16 knobs and switches, a two-digit preset readout and a USB port for the editor software.

Does the Echolution 2 Ultra Pro run on a battery?

No. Premier Guitar's review notes there is no battery option. The pedal comes with an 18V power supply, so it needs mains or pedalboard power rather than an internal battery.

Does the Echolution 2 Ultra Pro have a computer editor?

Yes. Guitar.com's review notes a free Mac/PC editor for computer interface, and Guitar Interactive reported a PC/Mac application supporting the platform's sound design potential. The Ultra Pro's improved USB port connects to the editor software.

Can the Echolution 2 Ultra Pro sync to MIDI clock?

Yes. Its rear-panel MIDI in and out jacks let you sync the delay and LFO times to external clocks, or use the pedal's own clock to drive other time-based effects. Every function can be controlled via MIDI.

How many presets does the Echolution 2 Ultra Pro hold?

The pedal stores 60 presets. It ships loaded with 60 Pigtronix presets as a starting point, and these can be edited and stored. The optional Echolution 2 Remote Switch gives access to presets on the fly.

How long is the delay on the Pigtronix Echolution 2?

The Echolution 2 Ultra Pro offers 12 seconds of digital delay time. The original Echolution 2 created echoes from 10ms up to 10 seconds, and the Echolution 2 Deluxe also offered 12 seconds.
