The TC Electronic Sub 'N' Up is an octave pedal that gives a player one octave up and two octaves down, each with its own blend knob so the voices can be mixed in any proportion against the dry signal123. It was announced in May 2016 as the latest addition to TC Electronic's TonePrint pedal line, available from 19 May 2016 at $129 in the US4. Its main selling point is polyphony: TC Electronic's product page promises "lightning-fast note tracking and impeccable hi-fi octave tones when playing chords"5.
What it does: one octave up and two octaves down
The Sub 'N' Up produces three octave voices alongside your dry signal: one octave up and two octaves down1. Each voice has its own blend or level control, so you can dial in as much or as little of each as you want, from low thumping sub-octave tones through to high, almost 12-string-like sounds10. A fourth control sets the amount of dry signal mixed in with the octaves1.
The octave-up control can stand in for a 12-string guitar, as Bass Musician Magazine's reviewer Ty Campbell put it: "Want the sound of a 12-string guitar, but don't have one? Use the octave up control."1 The second sub-octave goes further down, and Premier Guitar's reviewer found it capable of "ominous low rumble" and noted that "truly filthy textures lurk in the upper range of this control," especially on bass guitar through a proper bass amplifier2.
The pedal works with both guitar and bass4, and Bass Musician Magazine reviewed it from a bass player's perspective, finding it "works great" for adding octaves to a bass rig1.

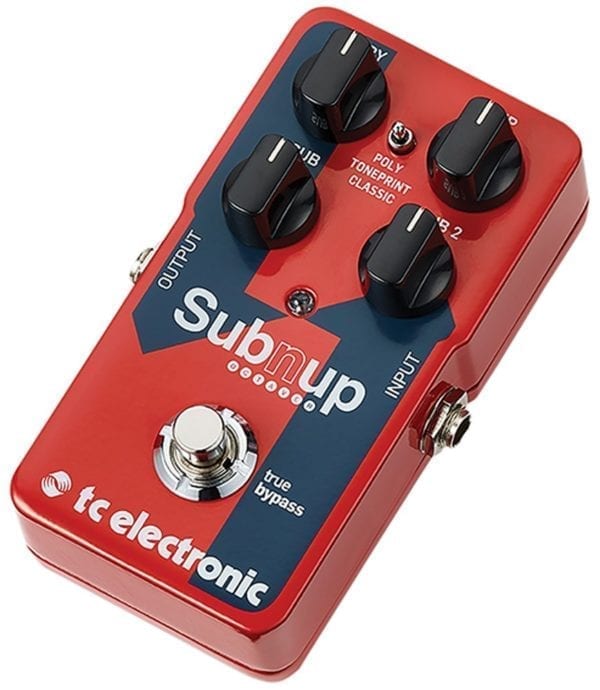

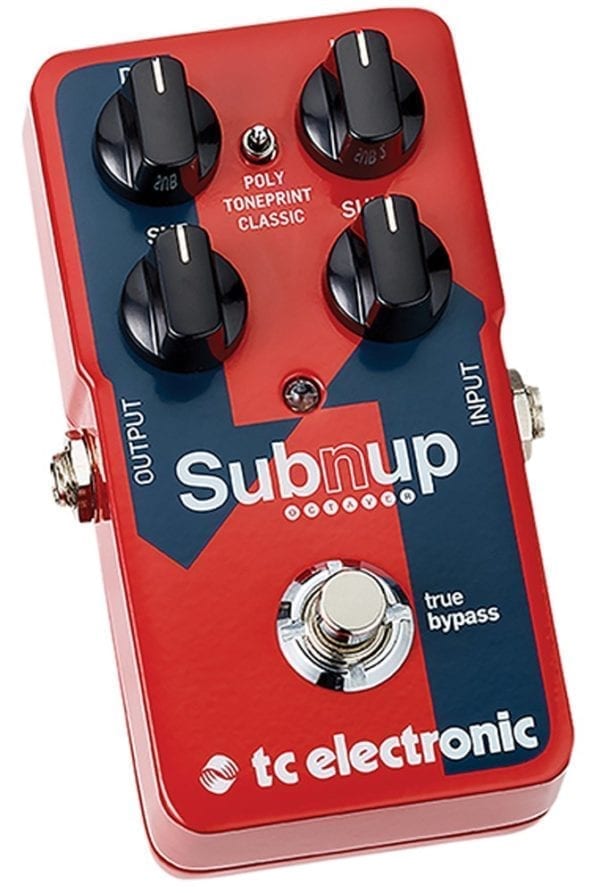

The controls: four blend knobs and a mode switch
| Control | What it does |
|---|---|
| Dry | Amount of dry signal mixed in with the octaves1 |
| Up | Amount of the octave-up voice9 |
| Sub | Amount of the first sub-octave (one octave down)9 |
| Sub 2 | Amount of the second sub-octave (two octaves down)9 |
| Three-way mini toggle | Sets the operating mode3 |
MusicRadar's reviewer Trevor Curwen described the layout as "individual knobs for each of the four signals, so you can create your own blends"3. Premier Guitar called the pedal "a cool study in how much octave-tweaking fun you can stuff into a little enclosure without a treadle"2.
Poly, Classic and TonePrint modes
A three-way toggle switch selects between the pedal's operating modes3.
- Poly mode offers polyphonic octaving, working equally well on chords or single notes3. TC Electronic claims fast note tracking10, and the maker describes the octave engine as delivering "flawless polyphonic tracking"5.
- Classic mode offers the old-school monophonic octave shifts associated with vintage octave pedals, complete with glitching if you attempt to play chords3. Premier Guitar's reviewer found "the classic setting provides those raw, crooked sounds with ease"2.
- TonePrint mode is a slot for TC Electronic's TonePrint technology, which lets you load in external, often artist-developed settings, plus a deep-editing facility for tweaking your own11. MusicRadar's reviewer noted the TonePrint capability "can add modulation into the sonic equation," including organ sounds, flanging or overdrive3. Guitar World's buying guide says the Sub 'n' Up "can take on amazing, synth-like modulated sounds" through TonePrint11.
TC Electronic's product page describes the pedal as a next-generation polyphonic octave pedal with a monophonic octaver mode and integrated TonePrint technology5.
Power and connections
The Sub 'N' Up runs on a 9V DC center-negative supply drawing 100mA8, and it also accepts a 9V battery: MusicRadar's launch coverage states that "true bypass switching and 9V battery or power supply operation come as standard"4. Its sockets are one input, one output, a power socket and USB9; Guitar World's buying guide lists these as a 9V power input, a quarter-inch instrument input, a quarter-inch amp output and a mini USB-B input11. The USB connection is how TonePrint settings are loaded.
The circuit type is reported differently: RockBoard's PedalPedia records the circuit type as analog8, while MusicRadar groups the Sub 'n' Up with digital octave pedals such as the Electro-Harmonix POG12.
What reviewers said
MusicRadar's Trevor Curwen found it "easy to use," small enough to slot into most pedalboard scenarios, and cheaper than the immediate competition3. Guitar World's Paul Riario reviewed it at a $129.99 street price in August 201613. Pedal of the Day has called it one of their best sellers and noted that TC Electronic's Flashback 2 Crystal delay effect uses the same algorithm14.
"This easy-to-use pedal is small enough to slot into most pedalboard scenarios and costs a lot less than the immediate competition."
The Sub 'N' Up Mini and other versions
TC Electronic released the Sub 'N' Up Mini in June 2017 as the newest member of its mini-pedal family15. It carries the same octave engine as the full-size pedal, and TC Electronic says it "provides the same tonal possibilities as its full-size brother"15.
| Sub 'N' Up | Sub 'N' Up Mini | |
|---|---|---|
| Controls | Dry, Up, Sub, Sub 2, mode toggle9 | Dry, Sub, Up only16 |
| Second sub-octave knob | Yes9 | No16 |
| Mode toggle | Yes9 | No16 |
| Modes | Poly, Classic, TonePrint1715 | Hi-fi polyphonic and old-school monophonic via the free TonePrint app15 |
| Released | 19 May 20164 | June 201715 |
MusicRadar's Michael Astley-Brown reported that the Mini "does away with the original's two-octave down knob and mini-toggle," offering just the dry, sub and up controls16. Mode switching on the Mini is handled through the free TonePrint app, which also loads presets and artist TonePrints15. Premier Guitar says the Mini's monophonic mode delivers "glitchy synth goodness" and that the pedal is suited to creating faux bass lines with a guitar15. Delicious Audio's octave-pedal buying guide describes the Mini simply as a more affordable version with fewer controls6.
Videos
ProGuitarShopDemos
Sweetwater
Premier Guitar
Questions
Is the TC Electronic Sub 'N' Up analog or digital?
It is generally described as a digital octave pedal, and MusicRadar groups it with digital octavers like the Electro-Harmonix POG. RockBoard's PedalPedia listing, however, records its circuit type as analog. Either way, its polyphonic tracking is handled by TC Electronic's octave engine.
Does the Sub 'N' Up work with bass?
Yes. MusicRadar reported at launch that the pedal works with both guitar and bass, and Bass Musician Magazine reviewed it as a bass player, noting it provides two octaves down and one up. The Premier Guitar reviewer found the second sub-octave especially effective on bass guitar through a proper bass amplifier.
Can the Sub 'N' Up run on a battery?
Yes. MusicRadar's launch coverage states that true bypass switching and 9V battery or power supply operation come as standard. It also runs on a 9V DC center-negative power supply, drawing 100mA.
Is the Sub 'N' Up true bypass?
Yes, with a choice. TC Electronic's product page describes a True Bypass or Buffered Bypass switch, plus a Kill-Dry on/off option, so you can set the bypass behavior to suit your pedalboard.
What does the Sub 'N' Up Mini leave out?
The Mini drops the original's second sub-octave knob and the mini-toggle, offering just the dry, sub and up controls. It keeps the same octave engine, polyphonic and monophonic modes, and TonePrint support, and TC Electronic says it provides the same tonal possibilities as the full-size pedal.
Does the Sub 'N' Up track chords?
Yes. In Poly mode it is designed to handle chords, and TC Electronic claims lightning-fast, glitch-free tracking on complex chords. Classic mode is monophonic and will glitch if you play chords, which is part of its vintage character.
