The EarthQuaker Devices Levitation is a vintage-voiced reverb pedal that, in the maker's words, "aims to fit somewhere between dirty sixties chambers, classic spring, and the big, ringing plate reverbs of days gone by"1. It was designed by EarthQuaker Devices in conjunction with the Levitation music festival in Austin, Texas, the event once known as the Austin Psych Fest, as a variation on the company's Ghost Echo reverb23. The pedal is no longer in production: EarthQuaker lists it among its discontinued devices1.
Four knobs and one toggle control the sound, and the launch press noted that they "control quite a bit more than you'd expect"3. Beyond conventional room and plate sounds, the Atmosphere control can push the pedal into self-oscillation, which made it a favorite for ambient and psychedelic playing.
What it does
EarthQuaker describes the Levitation as a reverb that sits between three vintage flavors: the dark, dirty chamber reverbs of the 1960s, classic spring reverb, and big ringing plates1. That positioning is what separates it from a straightforward spring emulation. Where the Ghost Echo is EarthQuaker's "spooky take on the haunted amp-top spring reverberation units of yesteryear"5, the Levitation widens the palette toward plate and chamber textures while keeping a vintage character.
Premier Guitar's review found the pedal covers a "wide range of delicious reverbs, from intimate to atmospheric" with an "easy-to-explore control set"2. The maker also publishes suggested settings with names that hint at the range: Empty Stage Reverb, Open Air 1968, Psychedelic Surfer, and Starchild1.
The controls

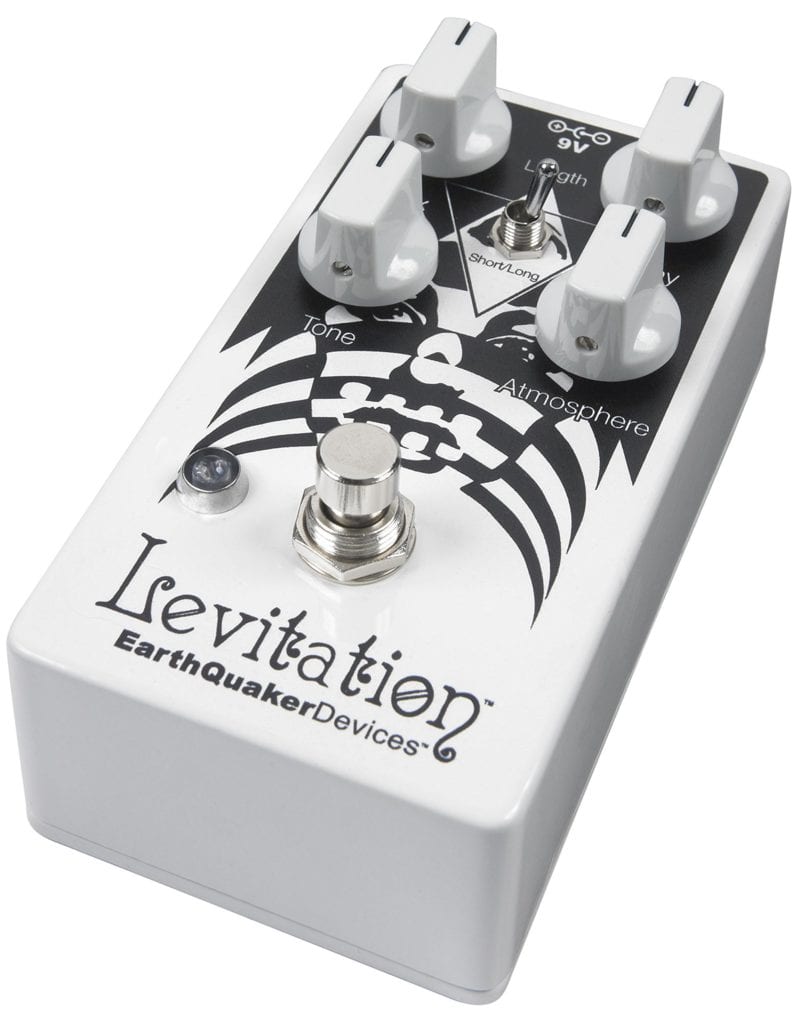

The control set is four knobs and one toggle3. Here is what each does, per the maker's own descriptions1:
| Control | What it does |
|---|---|
| Mix | Blends wet signal with dry. More reverb clockwise, less counterclockwise. |
| Tone | Input bandwidth control for the reverberated signal. Fully clockwise cuts low end for a brighter reverb; counterclockwise allows more low end for a fuller tone. |
| Decay | Sets the length of the reverb decay. Longer clockwise, shorter counterclockwise. |
| Atmosphere | Harmonic regeneration control. Feeds the upper frequencies of the reverb trails back through to create a more harmonic, ringing reverb. |
| Length (toggle) | Broad stroke control for decay time. Shorter to the left, longer to the right. |
The Atmosphere knob is the unusual one. Because it regenerates the upper frequencies of the reverb trail back into the circuit, turning it up makes the reverb ring more harmonically, and pushed far enough it takes the pedal into oscillation. EarthQuaker's own technical article puts it plainly: "the fun really begins with the short/long toggle and atmosphere knob, which can send your signal into wild oscillations territory and all the unhinged echo points in between"6.
The demo material for the V2 also describes practical starting points: with every control at minimum, the Mix knob alone dials in a small-room slap-back sound, and turning Tone fully counterclockwise with reduced Decay gives a bright, chiming slap back7.
Power and connections

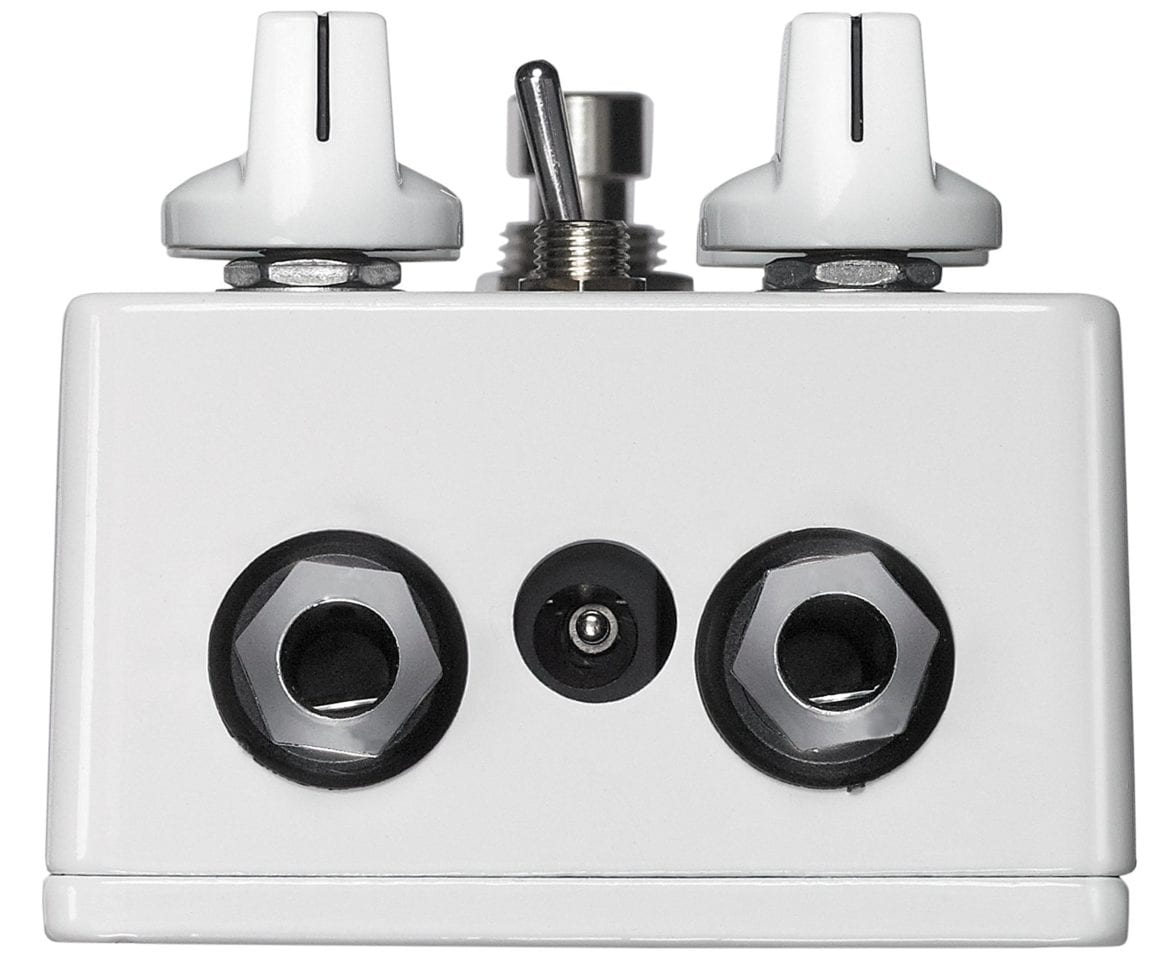

The Levitation runs on a standard 9V DC power supply with a 2.1mm negative center barrel and draws 72 mA1. Input impedance is 1 MΩ and output impedance is under 10 kΩ1.
The V2's relay-based true bypass allows both momentary and latching switching, but the relay system requires power to pass signal1. Unlike a passive true-bypass pedal, the Levitation will not pass your guitar signal with no power connected, so plan its place on your powered pedalboard accordingly.
A Ghost Echo variation made with the Levitation festival
The Levitation festival, based in Austin, Texas, grew out of the event once known as the Austin Psych Fest, a festival dedicated to psychedelic music and culture89. EarthQuaker designed the pedal in conjunction with the festival, and the launch announcement explained the thinking: "We wanted to remain true to the theme of Levitation and decided to do a variation on our popular Ghost Echo pedal"3.
The circuit reflects that lineage. Premier Guitar's review calls the Levitation "a close cousin of EarthQuaker's very spring-reverb-like Ghost Echo"2, and EarthQuaker's own technical article traces both pedals to the same PT2399-based circuit family6. The practical difference is in the controls: the Levitation "builds on the base sound found in the Ghost Echo but does away with the attack and dwell and adds" Tone, Decay, Atmosphere and Length in their place3, which gives it one more knob than the Ghost Echo6.
The pedal was officially released at the festival on May 8, 2015, sold at the merchandise booth that weekend, and began shipping to dealers on May 26, 2015 at a retail price of $185.0034. Each unit was built entirely by hand in Akron, Ohio3.
The V2 and its Flexi-Switch
The Levitation was later updated as the V2, the version EarthQuaker's product page documents1. The main change is the Flexi-Switch footswitching: relay-based true bypass that lets you use the pedal in either momentary or latching style, holding the switch for momentary swells of reverb or pressing it to latch on1. This was the same soft-switching update EarthQuaker rolled out across its V2 lineup in 2018, including the Spatial Delivery V2, Hoof Reaper V2, The Depths V2 and Rainbow Machine V210.
The V2 kept the same core sound and control set as the original: a vintage-voiced reverb between dirty sixties chambers, classic spring and big ringing plates, with the same four knobs and toggle7.
What reviewers said
Premier Guitar's review credited the pedal with a "wide range of delicious reverbs, from intimate to atmospheric" and an "easy-to-explore control set"2. Pedal of the Day's write-up highlighted the same strengths, noting the Atmosphere control's harmonic regeneration and the true bypass construction, hand-built in Akron like all EarthQuaker Devices pedals8.
"Four knobs and one switch control quite a bit more than you'd expect."
Videos
ProGuitarShopDemos
ProGuitarShopDemos
EarthQuakerDevices
Questions
Is the EarthQuaker Levitation still made?
No. EarthQuaker Devices lists the Levitation as no longer in production, and it appears on the maker's legacy page of discontinued products. It was released in 2015 and later updated as the V2 with Flexi-Switch switching, but new units are not being built.
Is the Levitation analog or digital?
It is a digital reverb. Premier Guitar's review identifies the heart of the circuit as an Accutronics BTDR-3H Digi-Log chip, and EarthQuaker's own technical article traces the circuit to the PT2399 delay chip family shared with the Ghost Echo.
How is the Levitation different from the Ghost Echo?
The Levitation builds on the Ghost Echo's base sound but removes the Attack and Dwell controls and adds Tone, Decay, Atmosphere and a Length toggle instead, giving it one more knob than the Ghost Echo. Premier Guitar calls the Levitation circuit a close cousin of the spring-reverb-like Ghost Echo.
Does the Levitation pass signal without power?
The V2 uses relay-based true bypass that allows both momentary and latching switching, and that relay system requires power to pass signal. With no power connected, the pedal does not pass your guitar signal, so it needs a 9V supply in the chain.
Can the Levitation self-oscillate?
Yes. With the Length toggle flipped to long and the Atmosphere and Decay controls turned up, the pedal produces what the launch press described as infinite spatial oscillations. EarthQuaker's own write-up says the toggle and Atmosphere knob can send the signal into wild oscillation territory.
