EarthQuaker Devices Transmisser

EarthQuaker Devices Transmisser

ReverbAnalogDiscontinued
List price
$225
Key facts
TypeModulated reverb with resonant filter (pedal)1
MakerEarthQuaker Devices, hand built in Akron, Ohio3
ReleasedOctober 20162
StatusNo longer in production1
Signal pathFully analog dry signal path6
BypassTrue bypass, electronic relay-based switching; audio will not pass without power1
Power9V DC, 2.1mm negative center barrel, 76 mA current draw1
Dimensions4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs1

The EarthQuaker Devices Transmisser is a modulated reverb pedal with extra-long decay, fed into a highly resonant filter that sweeps the reverberated signal1. Where a conventional reverb pedal gives you a room, hall or plate, the Transmisser takes its long reverb trails and pushes them through a resonant filter and system-wide modulation, producing a sound the maker describes as a "Resonant Reverberator"1. EarthQuaker Devices' own Aaron Rogers summed up what it does in the company's blog: "nailing those creepy Stranger Things vibes with its extra resonant, highly modulated filter swept ambience"2.

The pedal was released in October 20162, hand built in Akron, Ohio, USA3, and carried a $225 street price in the US4. It is no longer in production1.

What it does to your sound

The Transmisser's reverb decay is deliberately long, and the resonant filter that follows it is the heart of the pedal. The filter emphasizes a chosen frequency range of the reverberated signal, and the system-wide modulation moves that ambience around, so the trails are never static. The dry signal path is fully analog6, which means your unprocessed guitar signal stays analog from input to output while the reverb and filter processing happen around it.

Guitar.com's reviewer, Gary Walker, found the pedal approachable despite its unusual architecture, noting that "operating the Transmisser is not a space flight that will require a degree in physics"5. The manual is a single A5 sheet, and the review credits the pedal with rewarding easy tweaking5.

Controls

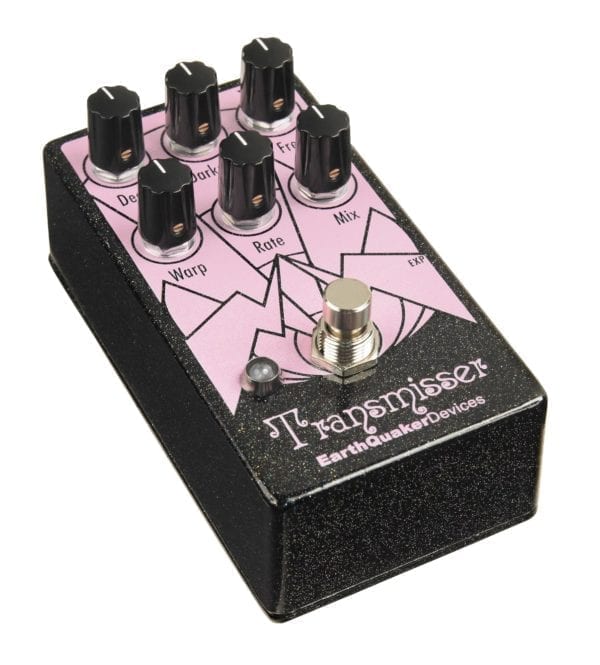

The Transmisser's compact sparkly enclosure carries six controls5. Each knob shapes a different part of the reverb-plus-filter system1:

ControlWhat it does
FreqSets the frequency of the resonant filter that processes the reverberated signal. Higher clockwise, lower counterclockwise.
DecayControls how long the reverb trails last. Trails become longer clockwise.
DarknessSets the tone of the reverberated signal; darker clockwise, lighter counterclockwise.
WarpA system slew control. Counterclockwise, the filter becomes deeper and more resonant, decay longer and warmer, modulation wider and the system more mellow. Clockwise, the system tightens and becomes more refined.
RateControls the speed of the system-wide modulation in a narrow range, hardwired for optimum depth. It modulates the reverberation and also the Freq and Darkness controls within a small range dependent on the Warp setting. Faster clockwise, slower counterclockwise.
MixThe reverb blend control; adjusts how much wet signal is blended with your dry signal. More clockwise, less counterclockwise.

The maker also publishes three suggested settings on its product page, labeled Hypnotized, Omni Voices and River of the Dead1, which give players starting points for different amounts of resonance, decay and modulation.

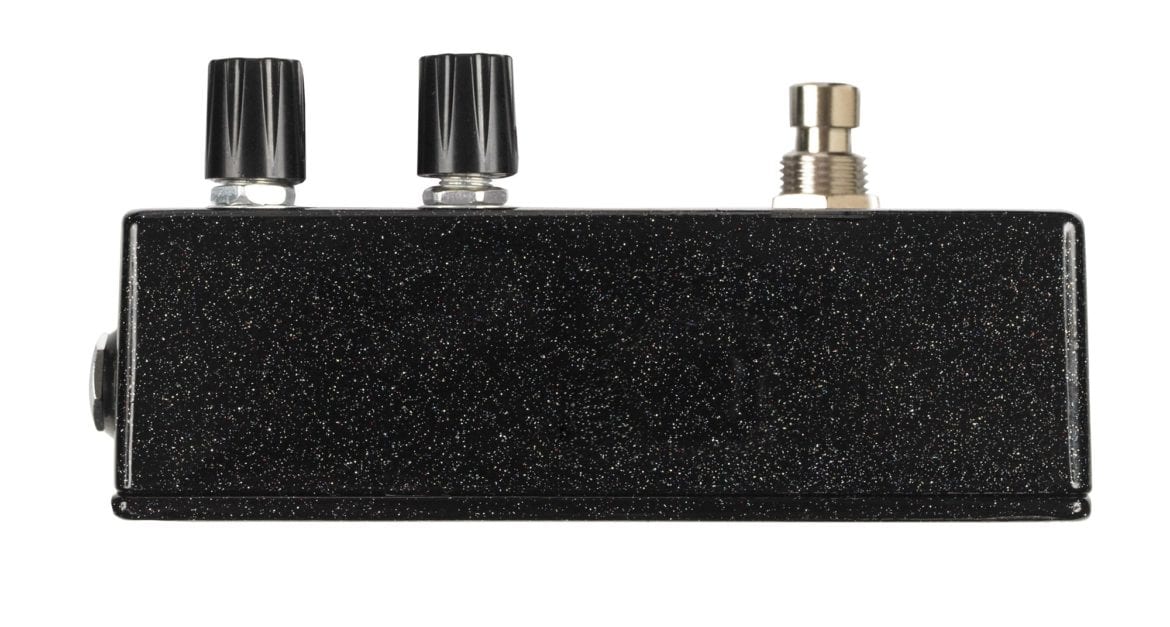

The Freq control can also be driven by an expression pedal through a jack on the eastern side of the enclosure, giving real-time control over the resonant filter frequency1. Premier Guitar's press release highlighted this expression control over the resonant filter frequency as a key feature at launch3.

The expression jack wiring is Tip = Wiper, Ring = 3.3v and Sleeve = ground1. Any expression pedal wired to that standard TRS arrangement will work; check your expression pedal's wiring before plugging in.

Power and connections

The Transmisser takes a standard 9 volt DC power supply with a 2.1mm negative center barrel1. There is no battery option, and at 76 mA of current draw it needs a proper spot on a pedalboard power supply rather than a low-current output1.

The pedal is true bypass with electronic relay-based switching, and EarthQuaker Devices states that audio will not pass without power1. If the supply drops out, the pedal mutes your signal rather than passing it through.

Input impedance is 1 MΩ and output impedance is under 1 kΩ1, standard figures that place it comfortably alongside most guitar pedals in a chain.

Where it came from and what reviewers said

EarthQuaker Devices announced the Transmisser in September 2016, with MusicRadar reporting availability from 3 October at $225 in the US and £219 in the UK6. The pedal was hand built in Akron, Ohio3, part of the company's line of reverb designs that includes the Afterneath, Levitation and Astral Destiny.

Guitar World's review by Paul Riario gave the Transmisser a Gold Award4, and Guitar.com's review found it easy to operate and quick to reward experimentation5.

The Towers Stereo Reverberant Filter is another pedal from EarthQuaker Devices.

Videos

Earthquaker - Transmisser
Knobs
EarthQuaker Devices Transmisser Reverb
ProGuitarShopDemos
EarthQuaker Devices Transmisser
Sweetwater

Questions

Is the Transmisser discontinued?

Yes. EarthQuaker Devices states on its product page that the Transmisser is no longer in production. It was released in October 2016 at a $225 street price, and secondhand units are the usual way to find one today.

Does the Transmisser pass signal without power?

No. The pedal is true bypass with electronic relay-based switching, and EarthQuaker Devices states that audio will not pass without power. If your power supply drops out mid-gig, the pedal mutes rather than passing your dry signal.

Can the Transmisser run on a battery?

No. The Transmisser takes a standard 9 volt DC power supply with a 2.1mm negative center barrel, and no battery operation is mentioned by the maker. It draws 76 mA, so plan a spot on a pedalboard power supply.

What expression pedal works with the Transmisser?

The Freq control can be driven by an expression pedal through the jack on the side of the enclosure. The wiring is Tip = Wiper, Ring = 3.3v and Sleeve = ground, so any expression pedal matching that standard TRS arrangement will work.

Is Towers a stereo Transmisser?

No. EarthQuaker Devices published a comparison stating that the Towers Stereo Reverberant Filter is a new circuit with its own reverb algorithm, resonant filter modes, stereo signal flow and user presets, distinct from the Transmisser.

Sources (6)
  1. Transmisser Resonant Reverberator, EarthQuaker Devices
  2. Aaron's Bass Hole, EarthQuaker Devices, 2016-12-21
  3. New EarthQuaker Transmisser Resonant Reverb Launch, Premier Guitar, 2016-09-20
  4. Review: EarthQuaker Devices Transmisser Pedal, Guitar World, 2016-10-19
  5. EarthQuaker Devices Transmisser Review, Guitar.com, 2017-01-11
  6. EarthQuaker Devices' Transmisser effects pedal will give you "endless intergalactic reverbs", MusicRadar, 2016-09-15
