The Big Joe B-301 Tube is an analog overdrive pedal from the Big Joe Stomp Box Company. Big Joe describes it as having "a screaming tube-amp tone profile typically associated with rock/blues guitar," so it is aimed at players who want pushed-amp breakup in a stompbox rather than a heavier distortion1.
The controls

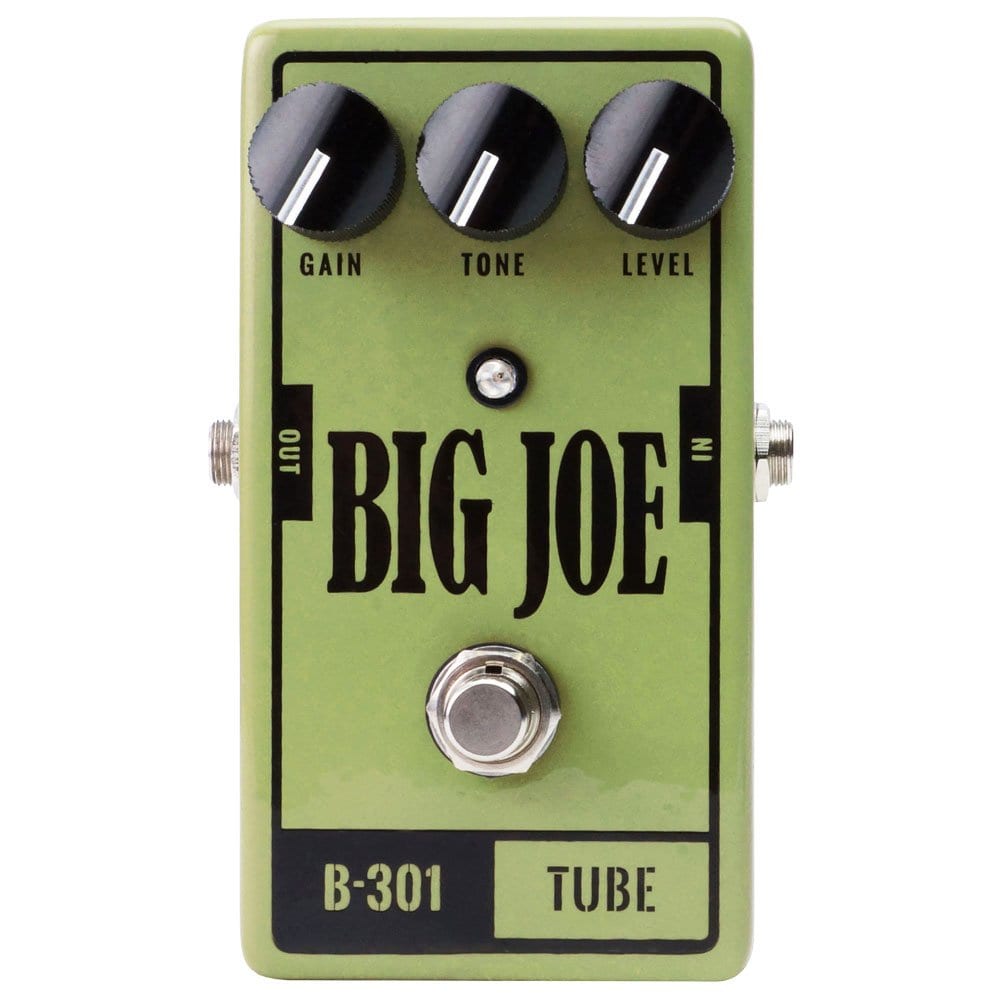

The B-301 Tube keeps its control set to three knobs: Gain, Level and Tone1.
| Control | What it does |
|---|---|
| Gain | Sets the amount of overdrive |
| Level | Sets the output volume |
| Tone | Shapes the frequency balance |
Big Joe gives the Tone knob the most specific description. The maker calls it "mid-range sensitive which improves clarity and responsiveness, and helps keep the sound from getting lost in the mix"1. For a player, that means the Tone control is voiced to emphasize the midrange rather than simply rolling off highs, which is useful in a band setting where a scooped sound can disappear behind other instruments.
The pedal also carries a status LED so you can see at a glance whether it is engaged1.
Power and connections
The B-301 Tube runs on either a 9V battery or a 9V DC power supply with a 2.1 mm x 5.5 mm barrel connector, polarity negative inside. The power supply is not included, so if you plan to use a pedalboard power brick you will need to supply your own cable1.
The center-negative polarity is the standard used by most pedalboard power supplies, but check your supply's polarity before plugging in, since a reversed connection can damage the pedal.
Signal connections are a single 6.3 mm mono jack input and a 6.3 mm mono jack output1, the standard arrangement for a simple series pedalboard chain. With true bypass switching, the pedal passes your clean signal unchanged when it is off1.
Where it sits in the Big Joe lineup
The B-301 Tube is one of several overdrives in the Big Joe range. Players comparing circuits can also look at the Big Joe B-302 Rock, the Big Joe B-309 Texas Screamer, the Big Joe B-402 Classic, the Big Joe B-404 Vintage II and the Big Joe B-502 Empire, along with the R-series drives such as the Big Joe R-401 Saturated, Big Joe R-402 Classic, Big Joe R-403 Vintage, Big Joe R-404 Vintage II and Big Joe R-405 Hard.
Videos
Simon Smith
Questions
Does the Big Joe B-301 Tube have a real tube in it?
No. Despite the name, the B-301 Tube is an analog overdrive pedal. Big Joe describes it as having a tube-amp tone profile associated with rock and blues guitar, but the pedal's circuit is analog, not tube-based.
Is the B-301 Tube true bypass?
Yes. Big Joe lists true bypass among the pedal's features, so when it is switched off the signal passes through without the circuit coloring it.
Does the B-301 Tube take a 9V battery?
Yes. The pedal runs on a 9V battery or a 9V DC power supply with a 2.1 mm x 5.5 mm barrel connector, center negative. The power supply is not included with the pedal.
Sources (1)
- B-301 TUBE, Big Joe Stomp Box Company
