MXR Sub Octave Bass Fuzz

MXR Sub Octave Bass Fuzz

BassAnalogDiscontinued
Key facts
TypeBass effects pedal combining fuzz and sub octave1
MakerMXR1
StatusLegacy product, no longer in production2
Street price$199 (2021)1
CircuitAll-analog1
Power9V DC, or 9V battery3
AdapterDunlop ECB003 9-volt adapter2
Also compatibleDC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included)2

The MXR Sub Octave Bass Fuzz (M287) is a bass effects pedal that combines two of the most popular thickening tools for bassists: fuzz and lower-octave doubling1. MXR says it "dishes out thunderous low end with earth-shaking fuzz," and the design story behind it is unusual: MXR's engineers combined the Growl section of the Bass Octave Deluxe with a long-forgotten fuzz circuit2.

The pedal is all-analog, and Premier Guitar found its tracking and fuzz delivery impressive, with solid note tracking down to a low G and two distinct types of bass fuzz on offer1. It sold at a $199 street price when reviewed in 20211.

MXR lists the Sub Octave Bass Fuzz as a legacy product, no longer in production2. It is no longer being made, so new units come only from remaining dealer stock or the secondhand market.

Fuzz and a sub octave in one pedal

The M287 puts two effects in one enclosure, and each can be used on its own. Premier Guitar's reviewer put it plainly1:

"you can run the fuzz or sub octave solo, so you're effectively getting two great-sounding effects in one"1

Running both together is where the pedal gets more radical. Guitar World's reviewer called this the pedal's strength3:

"the real ace up its sleeve is the ability to mix both of them with tone-shaping to create some radical tones"3

The sub octave side is a single-octave-down doubler, with the amount governed by one control on the right side of the pedal1. The fuzz side sits on the left, and the two halves are laid out as separate sections with their own controls1. Both effects have footswitchable bypassing1.

For tracking, Guitar World found the sub octave held solid note tracking down to a low G3, which covers the full range of a standard four-string bass and most of what a five-string player uses above the B string.

The controls: Gain, Fuzz, EQ, Sub, Dry and Mid

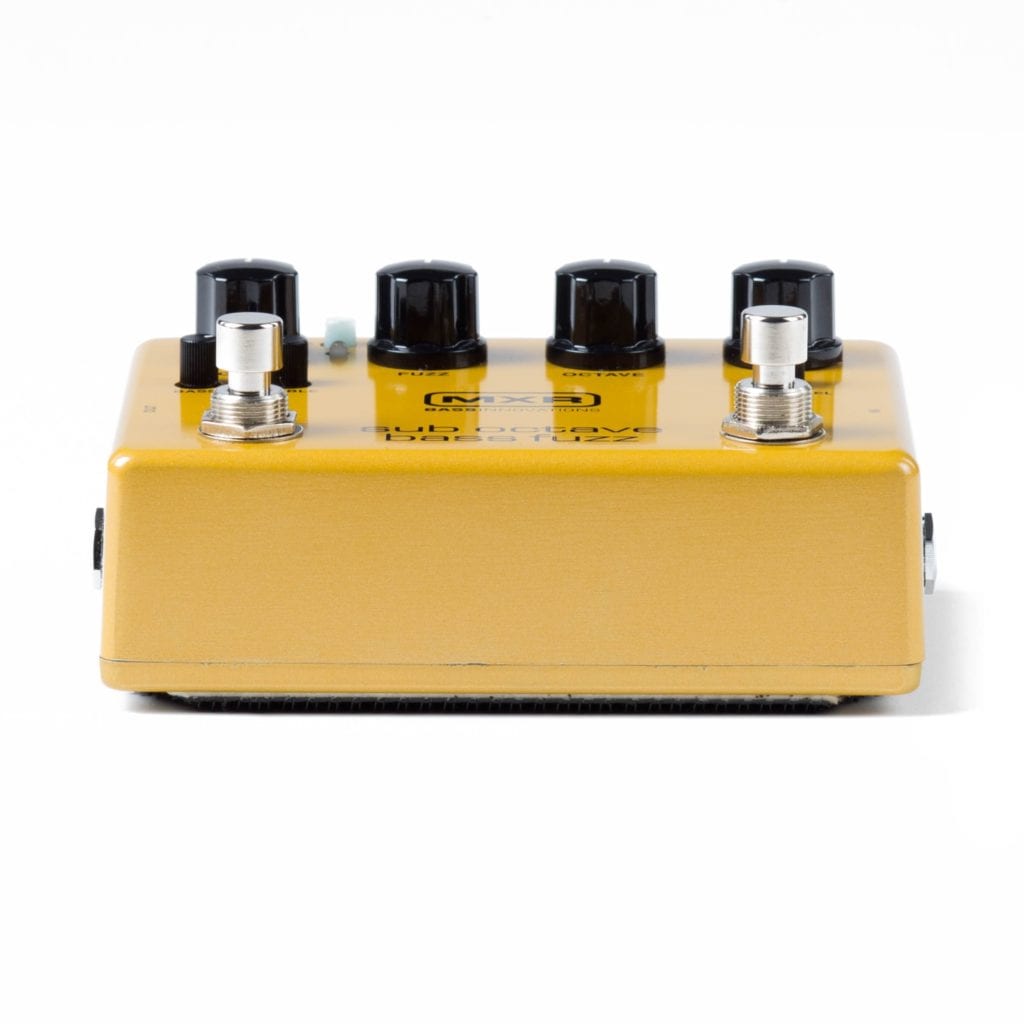

The control layout splits into a fuzz section on the left and a sub octave section on the right, with the dry signal controls alongside1.

ControlSectionWhat it does
GainFuzz (left)Sets the input drive into the fuzz circuit1
FuzzFuzz (left)Sets the fuzz intensity1
2-band EQFuzz (left)Additional fine-tuning of the fuzz tone1
Fuzz mode buttonFuzz (left)Push-button selecting between two voicings1
SubSub octave (right)Governs the amount of single-octave-down sub octave1
DryDry signalVolume for the unaffected dry signal1
Mid LevelDry signalGives the dry signal more punch in the midrange2

The two fuzz voicings are distinct: one has a flattened midrange and the other is scooped1. The separate Dry volume control is there to ensure clean low end retention, so your fundamental stays intact under the fuzz and octave2. The Mid Level control then lets you add extra cut and punch to that dry tone, which matters in a band mix where a heavily fuzzed bass can otherwise disappear2.

Premier Guitar's reviewer described the dry side as "a volume knob for the unaffected dry signal that's tied to a midrange-boost control for adding extra cut and punch to the dry tone"1.

Build and power

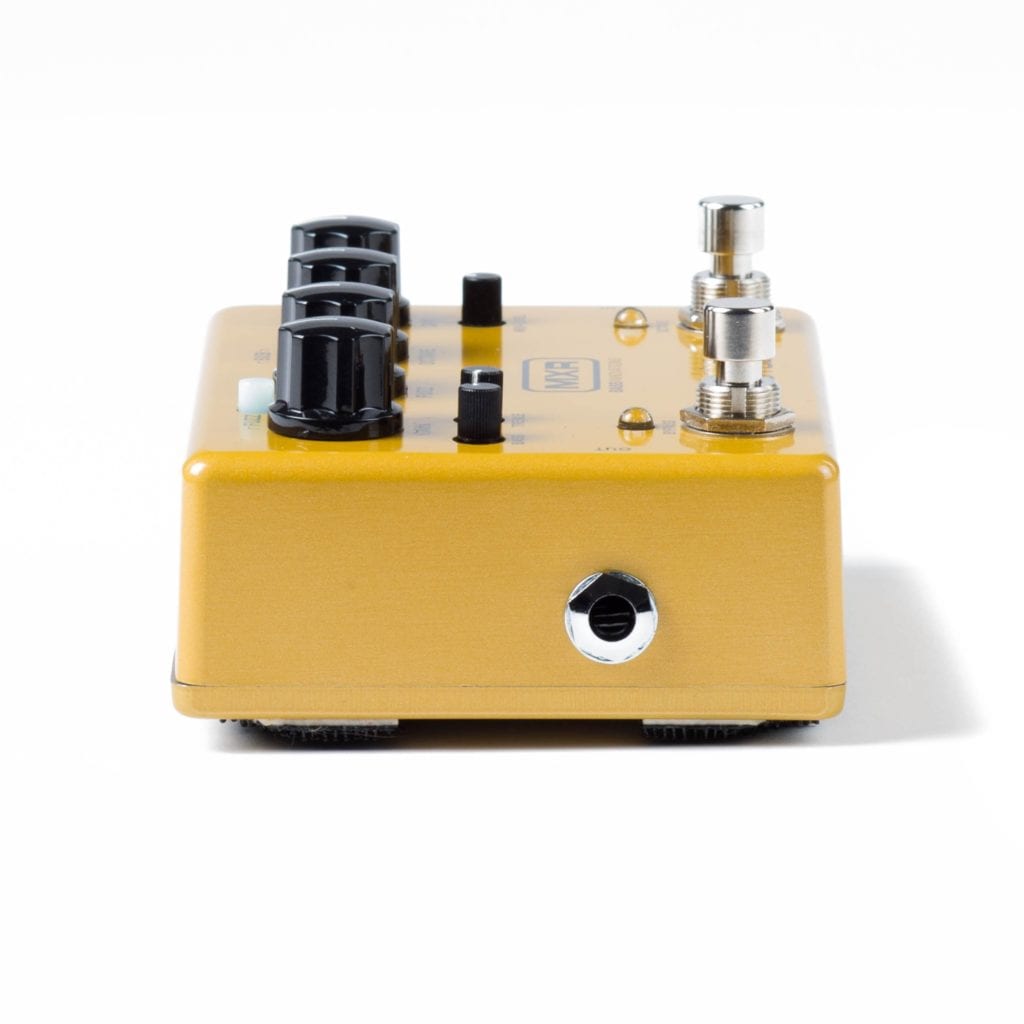

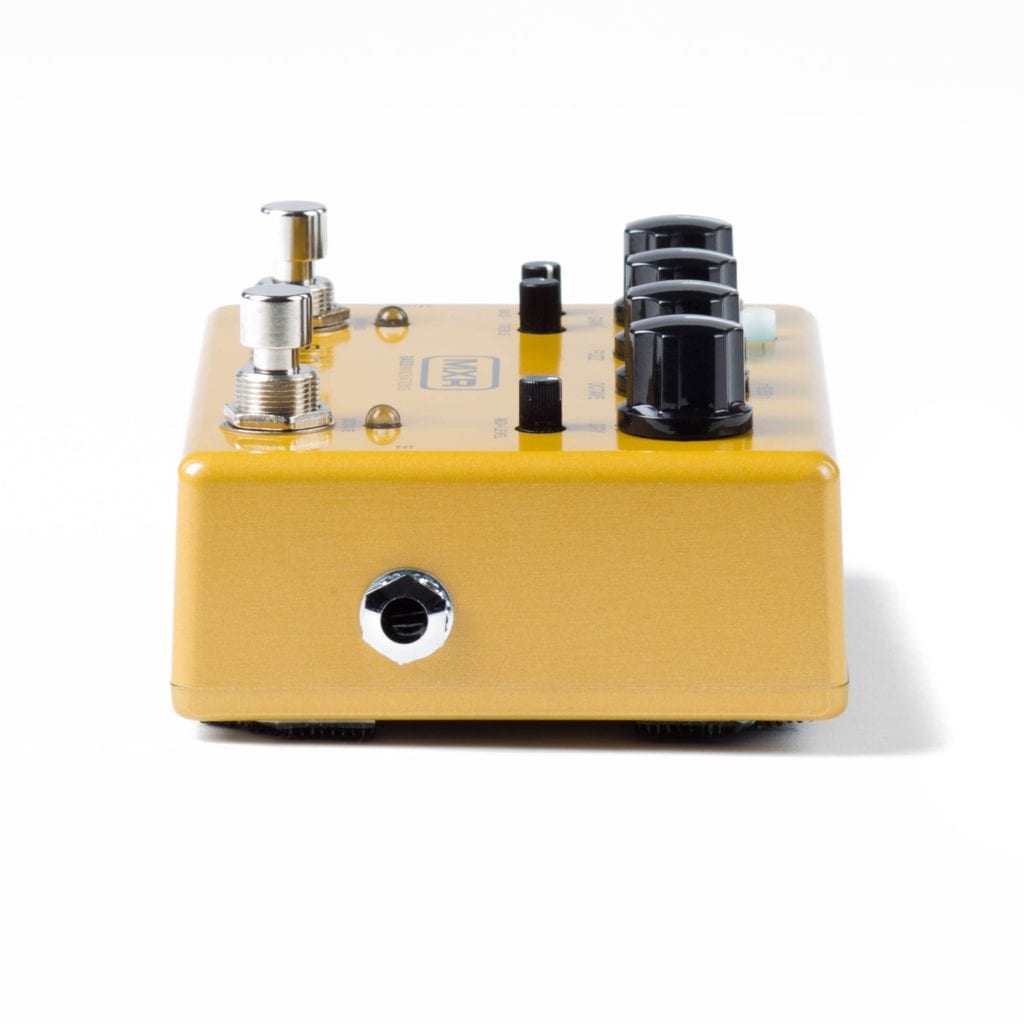

The M287 is built in the standard MXR enclosure, and Premier Guitar found it rugged1:

"Its enclosure is as tough as they come, the controls offer substantial friction when turned, and its footswitches respond to stomping with a reassuring mechanical snap."1

Power comes from a 9V DC supply, and unlike many modern pedals it also takes a 9V battery3. MXR specifies the Dunlop ECB003 9-volt adapter, and the pedal also works with Dunlop's DC Brick, Iso-Brick, and Mini Iso-Brick power supplies, which are not included2.

What reviewers said

Premier Guitar's 2021 review summed up the M287 as delivering "fierce-sounding fuzz that's unique in the MXR family," and praised its build quality alongside its two-in-one flexibility1. Guitar World's reviewer, covering MXR's bass pedal line, found "the pedal's performance is very impressive indeed," pointing to the solid tracking down to a low G and the two distinct fuzz types3.

Where it sits in the MXR bass line

The sub octave side comes from the Growl section of the Bass Octave Deluxe, so players who know that pedal will recognize part of the M287's character2. Within MXR's bass range it sits alongside fuzz and distortion options like the Bass Fuzz Deluxe, the Bass Distortion, and the M182 El Grande Bass Fuzz, and its octave-doubling role overlaps with pedals like the Vintage Bass Octave. What separates it is having both halves in one box with independent control of each1.

Videos

Review Demo - MXR M287 Sub Octave Bass Fuzz
Premier Guitar
NAMM '17 - MXR Sub Octave Bass Fuzz Demo
Premier Guitar
MXR Sub Octave Bass Fuzz
jimdunlopusa

Questions

Is the MXR M287 still in production?

No. MXR's product page lists the Sub Octave Bass Fuzz as a legacy product that is no longer in production. It was reviewed as a current pedal in 2021 at a $199 street price, but new units are no longer being made, so finding one means the secondhand market or remaining dealer stock.

Can you use the fuzz and octave separately on the M287?

Yes. Premier Guitar's reviewer noted you can run the fuzz or the sub octave solo, so it works as two effects in one box. You can also blend both together with the tone-shaping controls, which Guitar World called the pedal's real ace up its sleeve for creating radical tones.

How low does the MXR Sub Octave Bass Fuzz track?

Guitar World's reviewer found solid note tracking down to a low G. That covers the open strings and most of the working range of a standard four-string bass and a good part of a five-string, though the lowest notes on a five-string B string sit below where the reviewer reported tracking holding up.

Is the MXR Sub Octave Bass Fuzz analog?

Yes. Premier Guitar described the M287 as an all-analog design, built with the same rugged construction standards MXR pedals are known for. MXR says its engineers built it from the Growl section of the Bass Octave Deluxe combined with a long-forgotten fuzz circuit.

Does the MXR M287 take a 9V battery?

Yes. MXR says the pedal can be powered by a 9-volt battery or a Dunlop ECB003 9-volt adapter, and Guitar World's spec listing also confirms battery power on the M287. It is also compatible with Dunlop's DC Brick, Iso-Brick, and Mini Iso-Brick power supplies, which are not included.

Sources (3)
  1. MXR M287 Sub Octave Bass Fuzz Review, Premier Guitar, 2017-09-07
  2. MXR® SUB OCTAVE BASS FUZZ, Dunlop (jimdunlop.com)
  3. MXR Sub Octave Bass Fuzz, Vintage Bass Octave and Dyna Comp Bass review, Guitar World, 2021-08-26
